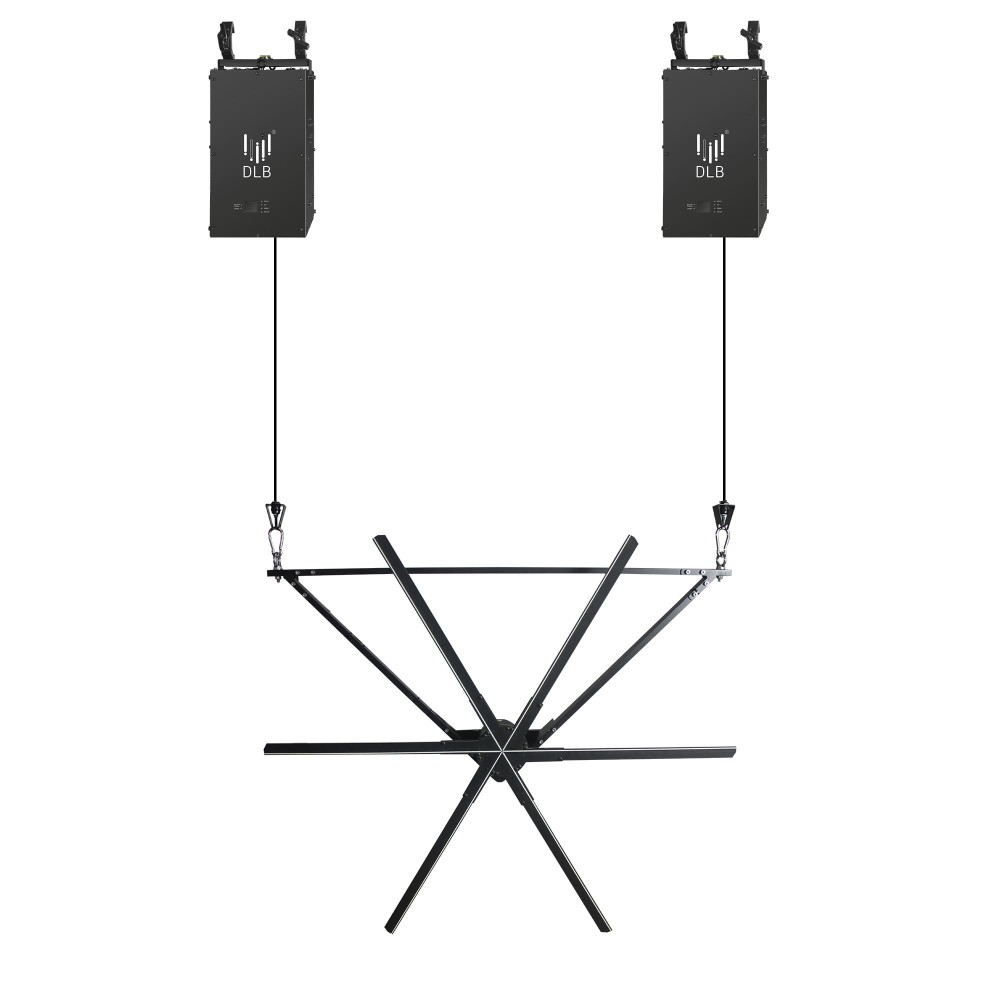

KINETIC LIGHT - HOLOGRAPHIC FAN D78CM 9 MT | Kinetic Light

Fixtures
·Resolution: 960*960
·Pixel spacing (mm): 0,81
·Rotating Average lifting speed: 500RPM
·Number of llight bars: 6
·Formats: Pictures, videos
·Picture: Jpg, png, gif
·Videos: Mp4, rmvb, mov
·Material: Aluminium
·Power: 90W
Dimensions: L780X780x100 mm
·Weight: 1,8kg

Winch
·Lifting length: 0-3
·Average lifting speed: 0,3m/s
·Material: Aluminium
·Housing color: Black
·Power: 150W
·Dimensions: L342*W280*H432mm
·Weight: 16,5kg
IP Class: IP20

Control
·Graphic LCD cotnrol panel
·4 Menu buttons to set the functions
·DMX512/RDM Proctol
·DMX channels:
Winch A: 8ch
Winch B: 8ch


Electrical and Connections
·AC100 to 240 Volts; 50-60 Hz
·Total power: 400W Maximum
·Total weight: 35kg Maximum
·3-Pin XLR input and output
·PowerCON input and output,
Maximum connect 6 winches via daisy chain (220V)
Maximum connect 4 winches via daisy chain (110V)
·Ambient temperature: 5-40 degrees


Installation
·The minimum installation height is 3 meters
·Ensure vertical hang
        ·4x FY-SE-70002 clamps for hanging installation
        ·Safety wire attachment hole

Group
·Winches x2
·Holographic Fan x1
