KINETIC LIGHT - TRIANGLE BEAM PANEL 9 MT | Kinetic Light

Fixture
Part 1: Panel pixels
·120 Pixels
·120pcs 0,2w RGB 3 in 1 LED

Part 2: Triangle
·1 Pixel
·144 pcs 0,2W RGB 3 in 1 LED

Part 3: Beam
·15 Pixels
·15 pcs 10W warm white LED (2600-2800k)
·Beam angle: 3 degrees
·Beam diameter: D28mm

Others
·Dimensions: L937x937x937mm
·Material: Aluminium+PE+PCB
·Power: 250W
·Weight: 4,6kg

Winch
·Lifting length: 0-9 meters
·Average lifting speed: 0,46m/s
·Power: 160W (1pcs)
·Dimensions: L342*W280*H432mm
·Weight: 16,5kg (1pcs)
Material: Aluminium
        ·Housing color: Black
·IP Class 20

Control
·Graphic LCD control panel
·4 menu buttons to set the functions
·DMX512/RDM Protocol
·DMX channels:
Winch A: 366ch
Winch B: 54ch
Winch C: 4ch

Electrical and Connections
· AC100 to 240 Volts; 50/60 Hz
·Total power: 800W Maximum
· Total weight: 55kg Maximum
        · 3-Pin XLR input and output
· PowerCON input and output,
Maximum connect 6 winches via daisy chain (220V);
Maximum connect 3 winches via daisy chain (110V)
·Ambient temperature: 5-40 degrees

Installation
·The minimum installation height is 4 meters
·Ensure vertical hang
·6x FY-SE-70001 clamps for hanging installation
·Safety wire attachment hole

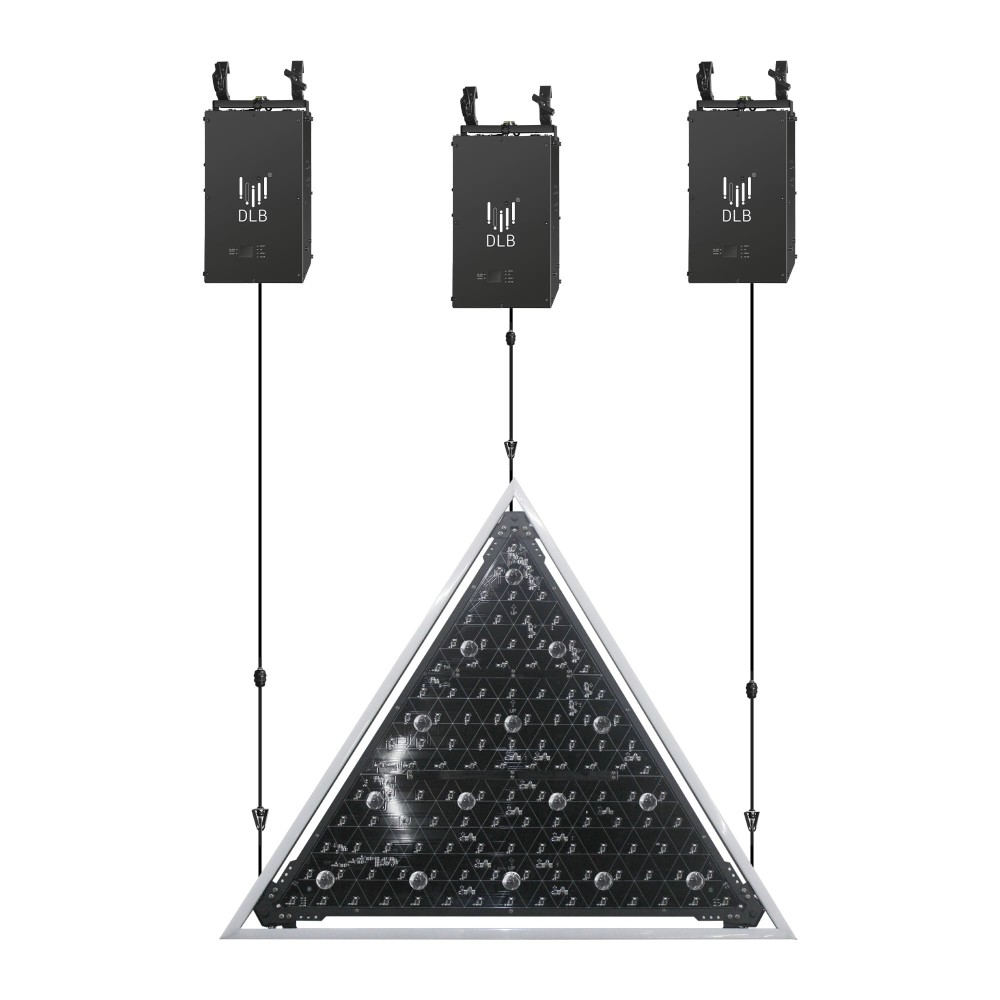

Group
·Winches x3
·Triangle Beam Panel x1
