FD 24 Circles

Naxpro FD 24 Circular Truss (4-Point / Square), 50x2 mm. Modular circles from 2 m to 10 m diameter, ideal for heavy lighting rigs, stable exhibition structures, and maximum torsional stability. The most robust FD circle.

The FD 24 Circular Truss series by Naxpro Truss represents the Square Truss (4-Point) solution in a curved format. Within the Fair Duty (FD) range, the FD 24 is the most robust system, offering maximum torsional stability and a considerable load capacity for professional installations.

Its four-tube design with webbing on all sides makes it the ideal choice when a strong, visually impactful structure is required, offering versatility for mounting equipment in any orientation.

⚙️ Features and Structural Advantage

Feature Detail
Structure 4 Point Circular (Square Truss), classified as Fair Duty (FD).
Main Tubes Four parallel tubes of 50 mm diameter with a wall thickness of 2 mm, joined by webbing on all four sides.
Dimensions Compact square cross-section (approx. 22 cm side length). Circles are available in Outer Diameters from 2 meters up to 10 meters.
Load Capacity High for the FD series. The square design provides the greatest strength and stability for distributed loads on stages and at exhibitions.
Torsional Stability Maximum. The square shape better resists torsion and bending in all directions than 2 or 3-point designs, which is crucial for large suspended structures.
Key Advantage over FD 22/23 Load homogeneity and mounting versatility. Symmetry allows clamps and equipment to be placed on any main tube without compromising orientation or load distribution, and also facilitates the installation of dimmers or cables within the inner space.

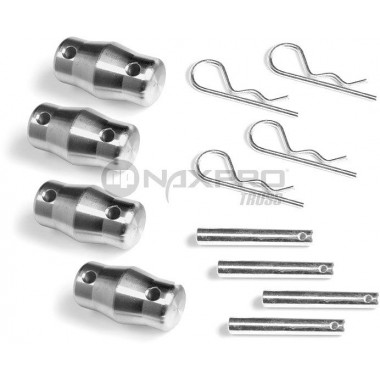

Connection Uses the standard conical connection system, compatible with straight sections of the FD 24 series.
