FD 32 Circles

Naxpro FD 32 Circular Truss (2-Point / Ladder), reinforced version. Modular circles from 2 m to 10 m Outer Diameter with a 29 cm cross-section, ideal for medium-load lightin...g and low-profile structures in events and exhibitions.

Read more

The FD 32 Circular Truss series by Naxpro Truss is a more robust version of the 2-Point (Ladder) Truss in a curved format. Although it maintains the 2-point configuration, it belongs to the FD 3X series, which uses larger structural dimensions than the FD 2X series. This results in a significant increase in load capacity and rigidity.

The FD 32 is the first Fair Duty (FD) circle designed for medium loads that offers a parallel (flat) shape, which is very useful on stages and at exhibitions where vertical space is limited.

⚙️ Features and Structural Improvement

Feature FD 32 Detail Comparison with FD 22
Structure 2 Point Circular (Ladder Truss), classified as Fair Duty (FD). Maintains the same concept.
Section Dimensions Wider parallel section (approx. 29 cm wide). Larger (FD 22 is approx. 22 cm). This increases resistance to horizontal bending.
Main Tubes Two parallel tubes of 50 mm diameter with a wall thickness of 2 mm. The main tube diameter is the same.
Load Capacity Medium. The wider section significantly increases distributed load capacity compared to the FD 22, allowing heavier equipment or lights to be suspended over longer spans. Higher.
Orientation Available in Horizontal (H) and Vertical (V) versions (circles from 2m to 10m Outer Diameter). Same as the FD 22.
Ideal Application Excellent for lighting rigs that require a less bulky (flatter) look than a triangular truss, but with greater support capacity than the FD 22. Robust support for large banners and lighting where headroom is restricted.

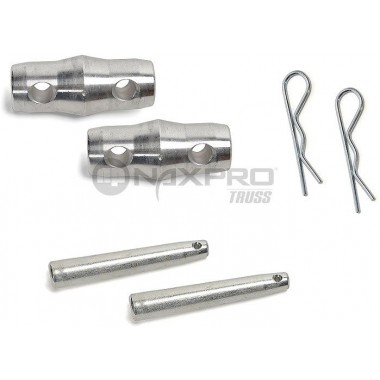

Connection Standard conical connection system. Compatible with the rest of the FD 3X series (straight and curved).
