FD 34 Circles

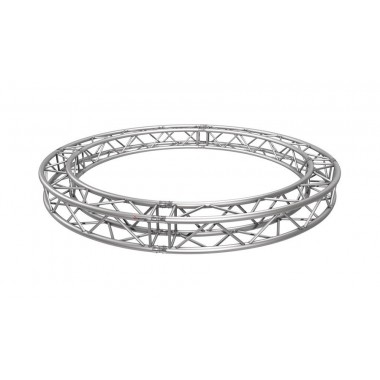

Naxpro FD 34 Circular Truss (4-Point / Square) with a 29 cm side length. Modular circles from 2 m to 10 m Outer Diameter, ideal for heavy loads, large stage productions,... and stands requiring maximum torsional stability. The largest FD circle.

Read more

The FD 34 Circular Truss series by Naxpro Truss is the most robust and highest-capacity Square Truss (4-Point) system within the Fair Duty (FD) line. This truss uses a significantly larger cross-section than the FD 24, elevating its capacity to handle heavy loads in large-scale productions and ensuring exceptional structural stability.

The FD 34 is the preferred choice for circular designs that demand maximum torsional resistance and ample interior space for efficient cable and equipment management.

⚙️ Features and Structural Improvement

Feature FD 34 Detail Comparison with FD 24
Structure 4 Point Circular (Square Truss), classified as Fair Duty (FD). Maintains the 4-point square geometry.
Section Dimensions Substantially larger square section (approx. 29 cm side length). Larger (FD 24 is approx. 22 cm). The increase in cross-sectional area maximizes bending resistance.
Main Tubes Four parallel tubes of 50 mm diameter with a wall thickness of 2 mm, joined by webbing on all four sides. The main tube diameter is the same.
Load Capacity Heavy for the FD series. Offers significantly higher load capacity than the FD 24, suitable for structures supporting a large amount of lighting, speakers, and LED screens. Maximum. It is the strongest circular truss in the FD range.
Torsional Stability Unsurpassed in the FD range. The 29 cm square shape optimally resists torsion, essential for very large or asymmetrically loaded rings. Superior.
Key Advantage for Rigging The ample interior space facilitates cable routing and the placement of dimmers and other mounting accessories, in addition to offering four symmetrical suspension points. Facilitates equipment and cable management in complex productions.

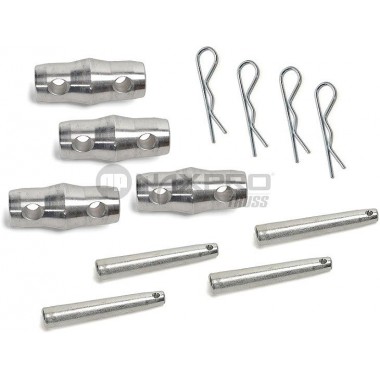

Connection Standard conical connection system, compatible with straight sections of the FD 34 series. Maintains compatibility with the rest of the FD 3X series.
