KINETIC LIGHT - STROBE BAR 3 MT | Kinetic Light

Fixture
Part 1: Beam
·20 Pixels
·20 pcs 10w RGB 4 in 1 LED
·Beam angle: 1,5 degrees
·Color diameter: D63mm

·Part 2: Strobe LED
· 20 Pixels
· 480 pcs 0,2w RGB 3 in 1 LED

Others:
·Dimensions: L1025xW150xH200mm
·Material: Aluminium+PE+PCB
·Power: 900W Maximum
·Weight: 6,5kg

Winch:
·Lifting height: 0-3 meters
·Average lifting speed: 0,3m/s
·Material: Aluminium
·Housing color: Black
·Power: 160W (1pcs)
·Dimensions: L342*W280*H432mm
·Weight: 16,5kg (1pcs)
·IP Class: 20

Control
·Graphic LCD control panel
·4 menu buttons to set the functions
·DMX512/RDM Protocol
·DMX channels:
Winch A: 152 ch
Winch B: 4ch

Electrical and Connections
·AC100 TO 240 vOLTS; 50/60 Hz
·Total power1300W Maximum
·Total weight: 40kg Maximum
·3-Pin XLR input and output
·PowerCON input and output,
Maximum connect 4 winches via daisy chain (220V);
Maximum connect 2 winches via daisy chain (110V)
·Ambient temperature: 5-40 degrees

Installation
·The minimum installation height is 6 meters
·Ensure vertical hang
        ·4x FY-SE-70002 clamps for hanging installation
        ·Safety wire attachment hole

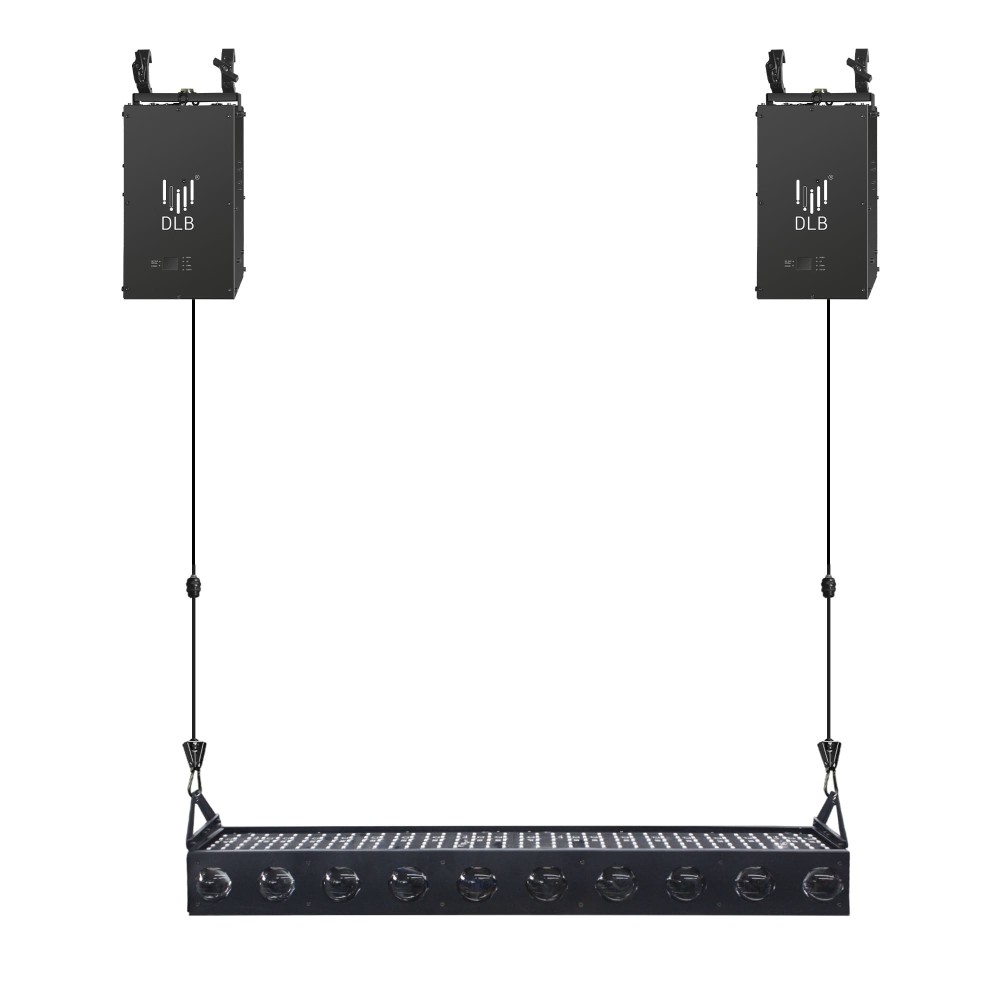

Group
         ·WInches x2
         ·Strobe bar x1
