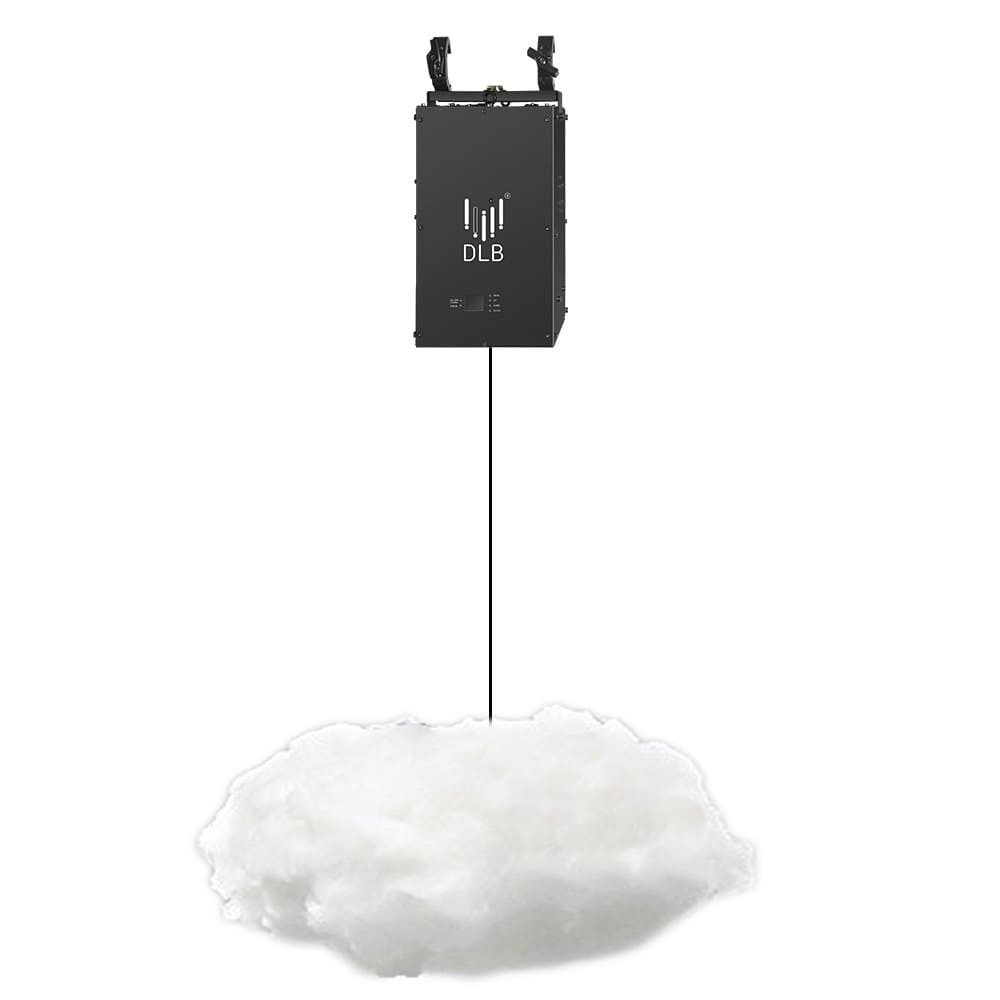

KINETIC LIGHT - CLOUDS (W1100xH500MM) 9 MT | Kinetic Light

Fixture
·1 Pixel
·42pcs 0,2w RGB 3 in 1 LED
·Beam angle: 360 degrees
·Dimensions: L1100mm*W500*H500mm
·Power: 10W Maximum
·Weight: 2,6kg

Winch
·Lifting length: 0-9 meters
·Average lifting speed: 0,46m/s
·Power: 160W (1pcs)
·Dimensions: L342*W280*H432mm
·Weight: 16,5kg (1pcs)
Material: Aluminium
        ·Housing color: Black
·IP Class 20

Control
·Graphic LCD control panel
·4 menu buttons to set the functions
·DMX512/RDM Protocol
·DMX channels: 9ch

Electrical and Connections
· AC100 to 240 Volts; 50/60 Hz
·Total power: 200W Maximum
· Total weight: 20kg Maximum
        · 3-Pin XLR input and output
· PowerCON input and output,
Maximum connect 8 winches via daisy chain (220V);
Maximum connect 4 winches via daisy chain (110V)
·Ambient temperature: 5-40 degrees

Installation
·The minimum installation height is 4 meters
·Ensure vertical hang
·2x FY-SE-70001 clamps for hanging installation
·Safety wire attachment hole

Group
·Winches x1
·Cloud x1
