KINETIC LIGHT - PIXEL RING D80CM 3 MT | Kinetic Light

Fixture
·40 Pixels
·240pcs 0,2w RGB 3 in 1 LED
·Light angle: 120 degrees
·Material: Aluminium
·Power: 55W
·Dimensions: D800mm*W35*H60mm
·Weight: 1,38kg

Winch
·Lifting length: 0-3 meters
·Average lifting speed: 0,3m/s
·Power: 100W (1pcs)
·Dimensions: L247*W167*H337mm
·Weight: 8kg (1pcs)
Material: Aluminium
        ·Housing color: Black
·IP Class 20

Control
·Graphic LCD control panel
·4 menu buttons to set the functions
·DMX512/RDM Protocol
·DMX channels:
Winch A: 126ch
Winch B: 4ch
Winch C: 4ch

Electrical and Connections
· AC100 to 240 Volts; 50/60 Hz
·Total power: 360W Maximum
· Total weight: 26kg Maximum
        · 3-Pin XLR input and output
· PowerCON blue and white,
Maximum connect 9 winches via daisy chain (220V);
Maximum connect 5 winches via daisy chain (110V)
·Ambient temperature: 5-40 degrees

Installation
·The minimum installation height is 4 meters
·Ensure vertical hang
·3x FY-SE-70001 clamps for hanging installation
·Safety wire attachment hole

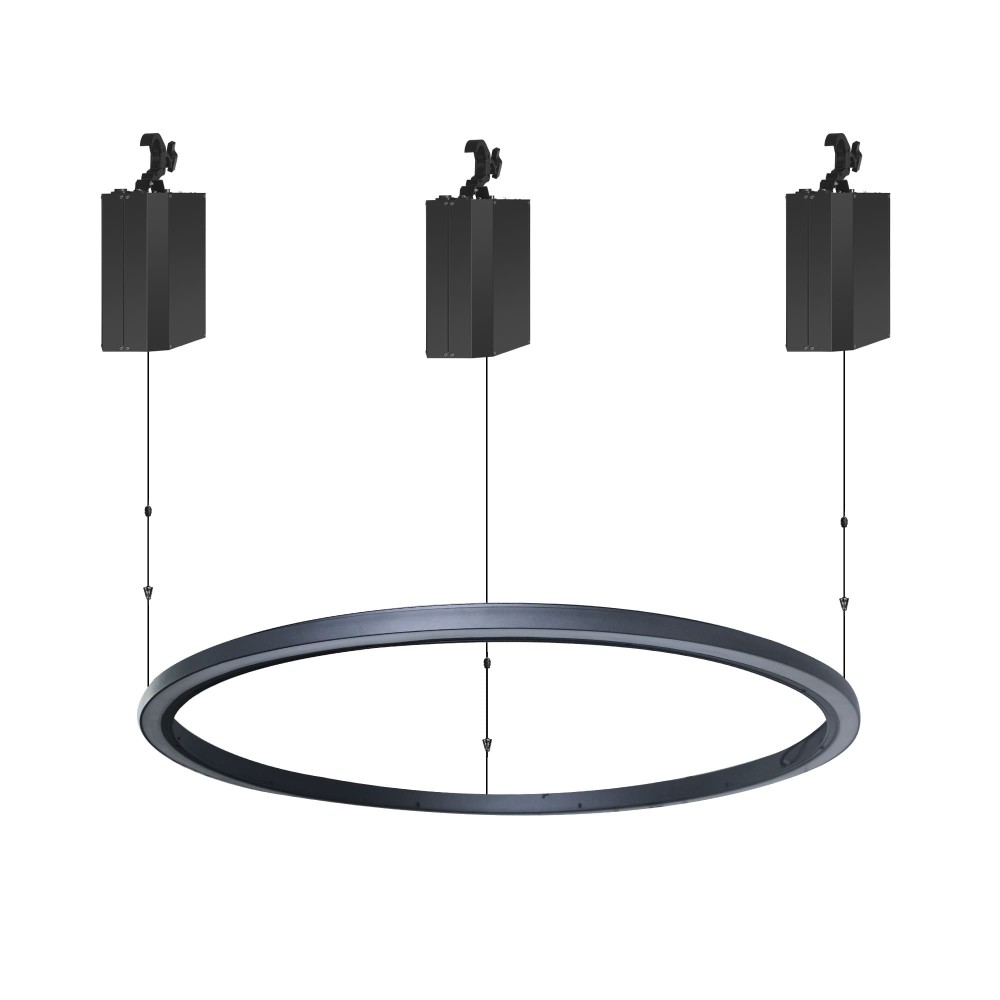

Group
·Winches x3
·Pixel ring x1
