KINETIC LIGHT - FROST TRIANGLE BAR 9 MT | Kinetic Light

Fixture
·18 Pixels on two sides
·54 pcs 0,2W RGB 3 in 1 LED
·Material: LLDPE White
·Power: 11W
·Dimensions: L1000mm*H1000mm
·Weight: 1,35kg

Winch
·Lifting length: 0-9 meters
·Power: 100W (1pcs)
·Dimensions: L247*W167*H337mm
·Weight: 7kg (1pcs)
·Average lifting speed: 0,65m/s
        · Material: Aluminium
· Housing color: Black
·IP Class 20

Control
·Graphic LCD control panel
·4 menu buttons to set the functions
·DMX512/RDM Protocol
·DMX channels:
Winch A: 60ch
Winch B: 60ch
Winch C: 60ch

Electrical and Connections
· AC100 to 240 Volts; 50/60 Hz
·Total power: 320W Maximum
· Total weight: 23kg Maximum
· Hold hands and quickly insert cables for power input and output,
Maximum connect 9 winches via daisy chain (220V);
Maximum connect 5 winches via daisy chain (110V)
·Ambient temperature: 5-40 degrees

Installation
·The minimum installation height is 4 meters
·Ensure vertical hang
·3x FY-SE-70001 clamps for hanging installation
·Safety wire attachment hole

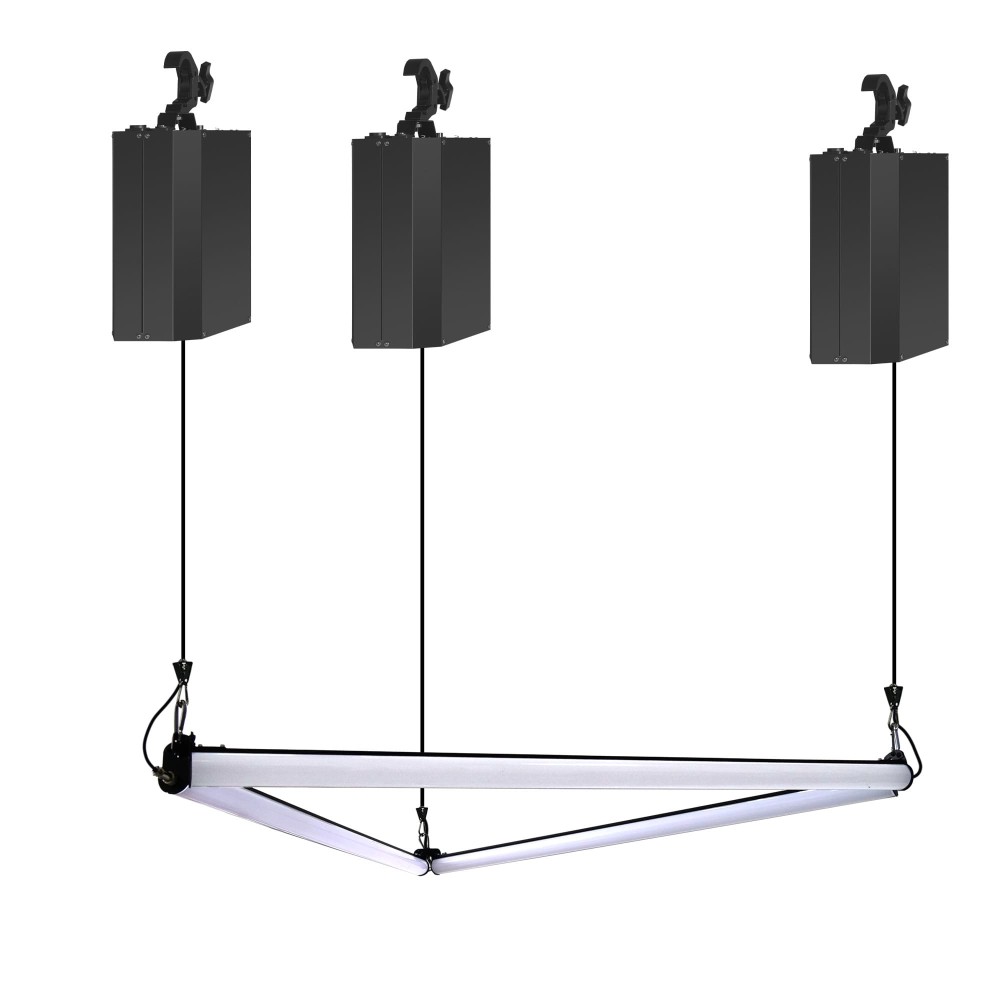

Group
·Winches x3
·Frost triangle x1
