KINETIC LIGHT - ARC LIGHT 9 MT | Kinetic Light

Fixture
·72 Pixels
·Light angle: 270 degrees
·Material: LLDPE White
·Power: 130W
·Dimensions: L1029mm*W1029*H1029mm
·Weight: 2,8kg

Winch
·Lifting length: 0-9 meters
·Average lifting speed: 0,45m/s
·Power: 100W (1pcs)
·Dimensions: L277*W167*H357mm
·Weight: 8,1kg (1pcs)
Material: Aluminium
        ·Housing color: Black
·IP Class 20

Control
·Graphic LCD control panel
·4 menu buttons to set the functions
·DMX512/RDM Protocol
·DMX channels:
Winch A: 222ch
Winch B: 4ch
Winch C: 4ch

Electrical and Connections
· AC100 to 240 Volts; 50/60 Hz
·Total power: 450W Maximum
· Total weight: 28kg Maximum
        · 3-Pin XLR input and output
· PowerCON blue and white,
Maximum connect 9 winches via daisy chain (220V);
Maximum connect 5 winches via daisy chain (110V)
·Ambient temperature: 5-40 degrees

Installation
·The minimum installation height is 4 meters
·Ensure vertical hang
·3x FY-SE-70001 clamps for hanging installation
·Safety wire attachment hole

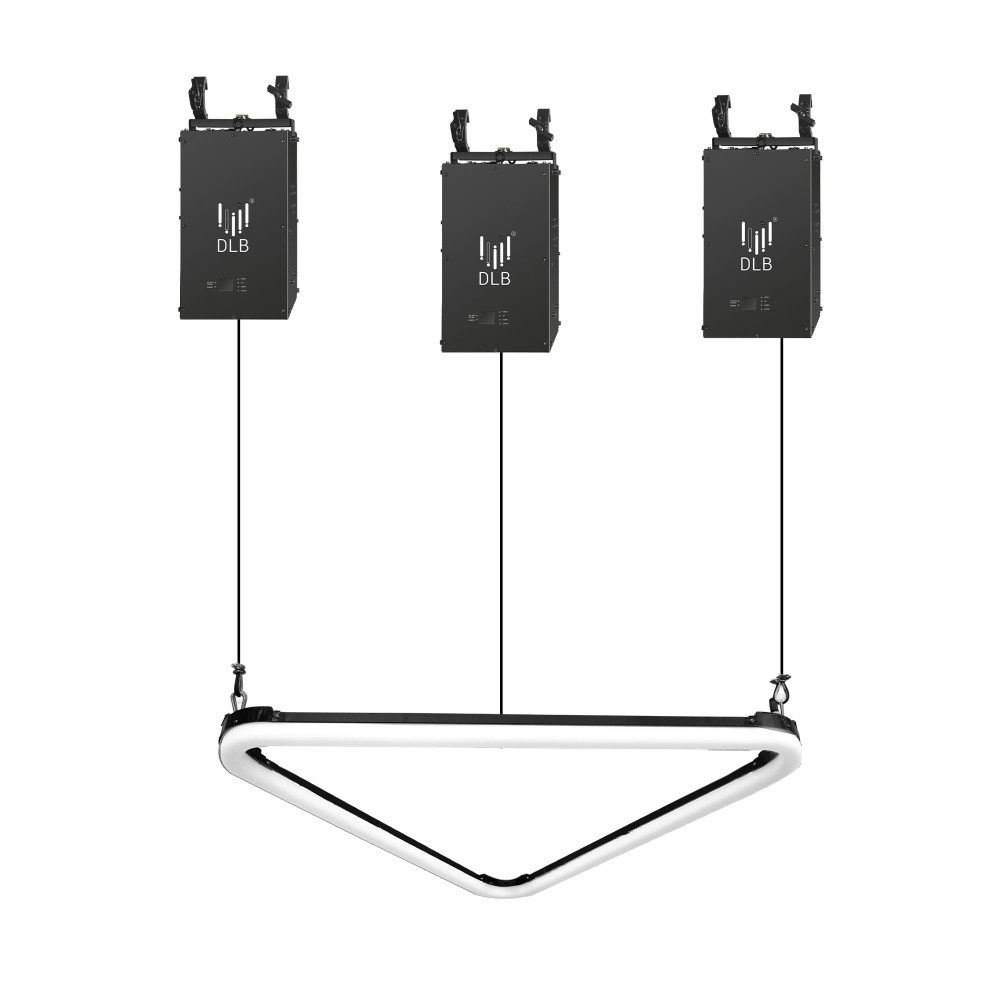

Group
·Winches x3
·Arc light x1
