KINETIC LIGHT - PIXEL LINE 6 MT | Kinetic Light

Fixture
·54 Pixels on two sides
·108 pcs 0,2W RGB 3 in 1 LED
·Light angle: 360 degrees
·Material: Transparent polycarbonate
·Power: 22W
·Dimensions: D23mm * L1200mm
·Weight: 0,35kg

Winch
·Lifting length: 0-6 meters
·Power: 100W (1pcs)
·Dimensions: L247*W167*H337mm
·Weight: 7,5kg (1pcs)
·Average lifting speed: 0,65 m/s
        · Material: Aluminium
· Housing color: Black
·IP Class 20

Control
·Graphic LCD control panel
·4 menu buttons to set the functions
·DMX512/RDM Protocol
·DMX channels:
Winch A: 168ch
Winch B: 4ch


Electrical and Connections
· AC100 to 240 Volts; 50/60 Hz
·Total power: 130W Maximum
· Total weight: 8,5kg Maximum
· 3-Pin XLR input and output
·PowerCon input and output, Maximum connect
9 winches via daisy chain (220V);
Maximum connect 5 winches via daisy chain (110V)
·Ambient temperature: 5-40 degrees

Installation
·The minimum installation height is 4 meters
·Ensure vertical hang
·2x FY-SE-70001 clamps for hanging installation
·Safety wire attachment hole

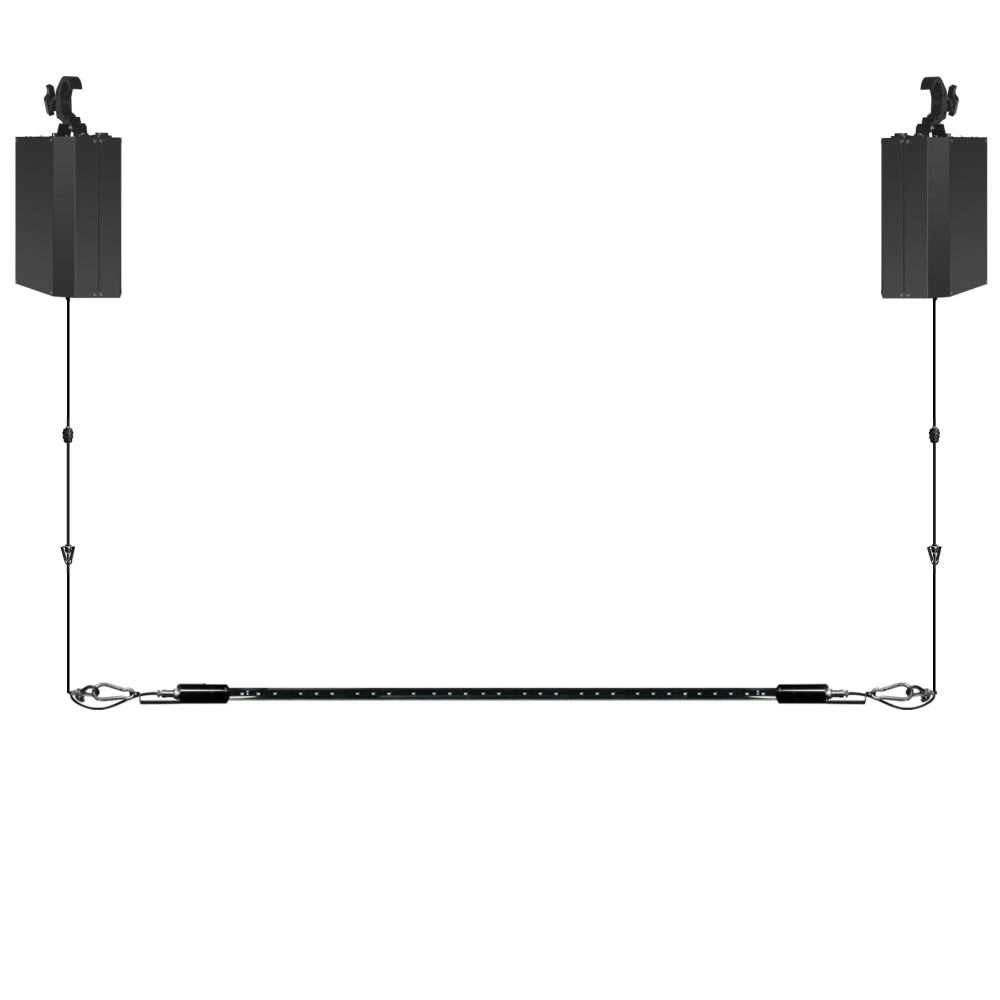

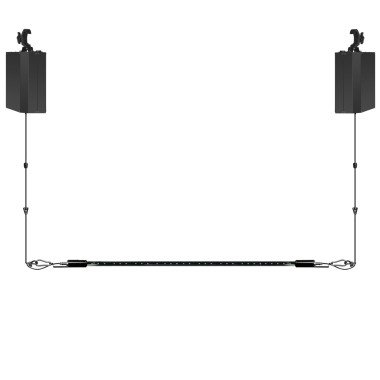

Group
·Winches x2
·Pixel line x1
