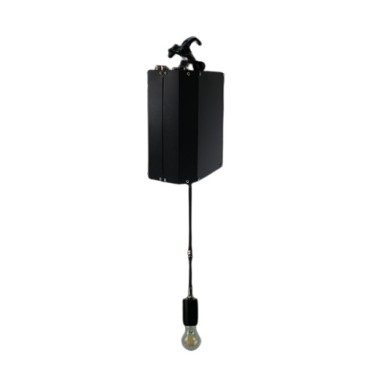

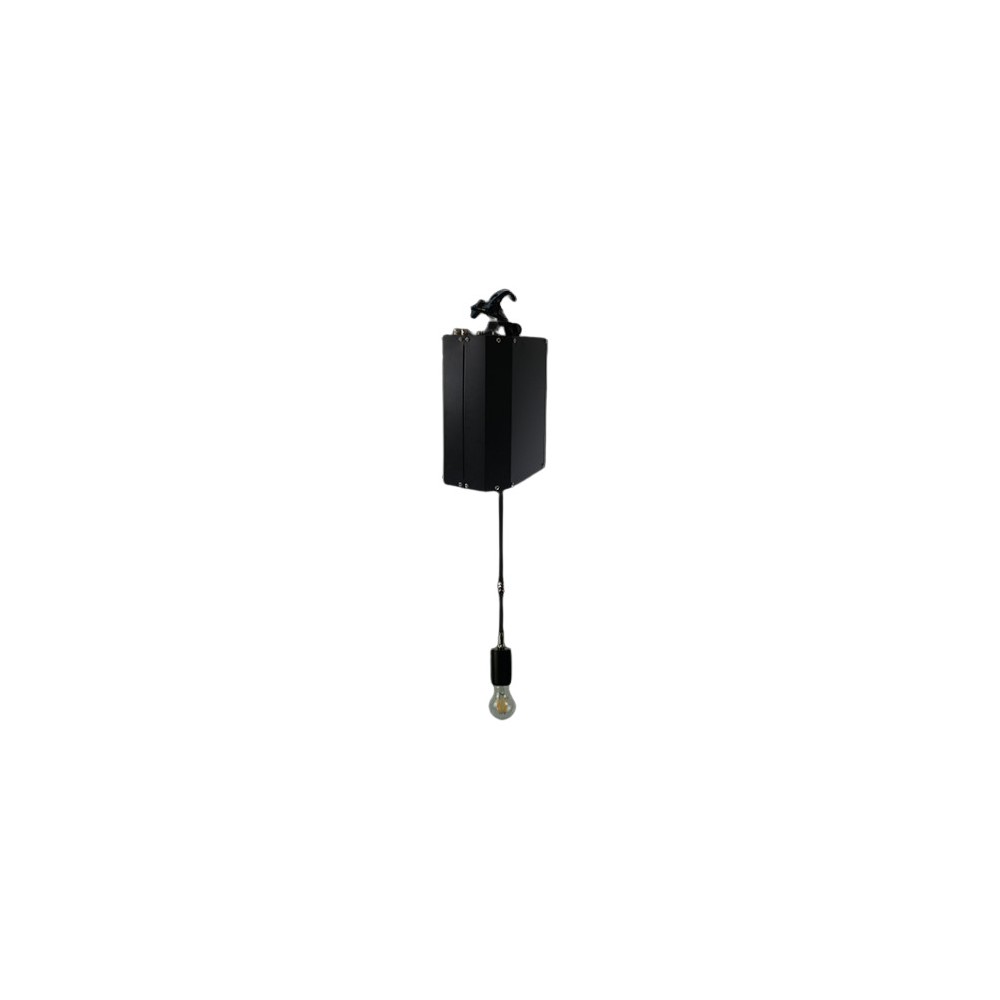

KINETIC LIGHT - BULB 9 MT | Kinetic Light

Fixture
·1 Pixels
·2700K 4W warm white LED
·Light angle: 360 degrees
·Material: Glass
·Power: 4W
·Dimensions: D125mm * H176mm
·Weight: 0,25kg

Winch
·Lifting length: 0-9 meters
·Speed: 0,7m/s
·Average lifting speed: 0,45m/s
·Power: 100W
·Size: L227*W167*H357mm
·Weight: 4,8kg
        · Material: Aluminium
· Housing color: Black
·IP Class 20

Control
·Graphic LCD control panel
·4 menu buttons to set the functions
·DMX512/RDM Protocol
·DMX channels: 9ch

Electrical and Connections
· AC100 to 240 Volts; 50/60 Hz
·Total power: 110W Maximum
· Total weight: 8kg Maximum
· 3-Pin XLR input and output
·PowerCON blue and white, Maximum connect
6 winches via daisy chain (220V);
Maximum connect 3 winches via daisy chain (110V)
·Ambient temperature: 5-40 degrees

Installation
·The minimum installation height is 4 meters
·Ensure vertical hang
·1x FY-SE-70001 clamps for hanging installation
·Safety wire attachment hole

Group
·Winches x1
·Bulb x1
