The TÜV certified rectangular Naxpro Truss XD 340 truss system combines the compact width of a 30´s truss with the high load values of a 40´s system.
Thus the Naxpro Truss XD 340 enables a logistic advantage due its space-saving dimensions and simultaneously allow a wide spectrum of possible uses through its extremely high stability. With a free span of up to 20 m, the Naxpro Truss XD 340 is often used in pre-rigg-constructions, fixed installations, stage- and exhibitions stand constructions.
The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. Naxpro Truss XD 340 is available in all RAL-colours and custom constructions.
Technical data:
Overall width 400 mm
Outer diameter tubing 50x3 mm
Diagonal bracing 25x3 mm

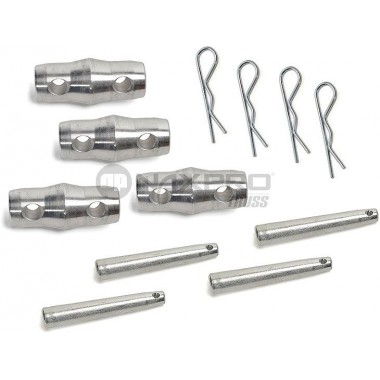

Including cone connectors with pin and r-spring (4x cone connector, 8x bolt, 8x r-clip)
Alloy EN-AW 6082 T6
TÜV certified
Weight: 6,20 kg
Dimensions 100 x 29 x 40 cm (LxWxH)
