NAXPRO-TRUSS XD 340 STRAIGHT 50 CM

€281.51 VAT not included
Disponible | Envío en 2 - 3 semanas
Reference: 1451048
EAN-13: 4250595813738
NAXPRO-TRUSS XD 340 STRAIGHT 50 CM
Quantity

  • Política de seguretat (editeu-la amb el mòdul de reassegurança de Client) Política de seguretat (editeu-la amb el mòdul de reassegurança de Client)
  • Política d\'enviaments (editeu-la amb el mòdul de reassegurança de Client) Política d'enviaments (editeu-la amb el mòdul de reassegurança de Client)
  • Política de devolucions (editeu-la amb el mòdul de reassegurança de Client) Política de devolucions (editeu-la amb el mòdul de reassegurança de Client)

The TÜV certified  rectangular Naxpro Truss XD 340 truss system combines the compact width of a 30´s truss with the high load values of a 40´s system.

Thus the Naxpro Truss XD 340 enables a logistic advantage due its space-saving dimensions and simultaneously allow a wide spectrum of possible uses through its extremely high stability. With a free span of up to 20 m, the Naxpro Truss XD 340 is often used in pre-rigg-constructions, fixed installations, stage- and exhibitions stand constructions.

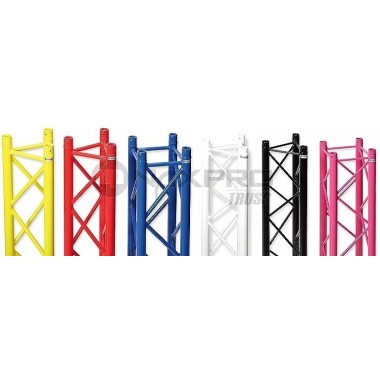

The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. Naxpro Truss XD 340 is available in all RAL-colours and custom constructions.

Technical data:
Overall width 400 mm
Outer diameter tubing 50x3 mm
Diagonal bracing 25x3 mm

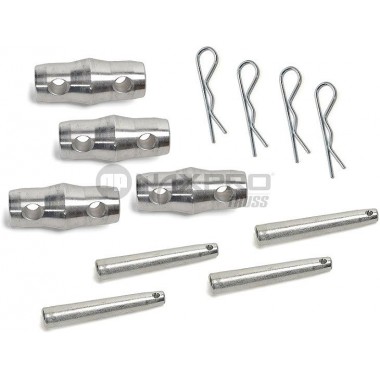

Including cone connectors with pin and r-spring (4x cone connector, 8x bolt, 8x r-clip)
Alloy EN-AW 6082 T6
TÜV certified
Weight: 3,90 kg
Dimensions 50 x 29 x 40 cm (LxWxH)
