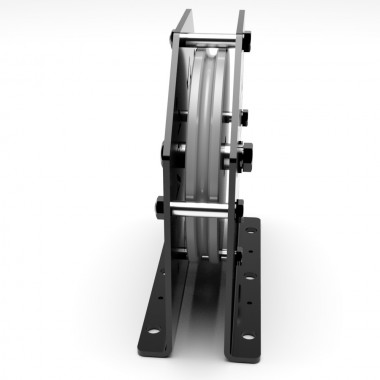

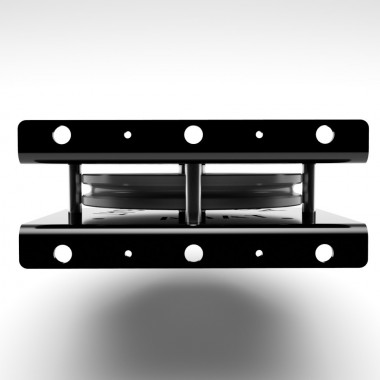

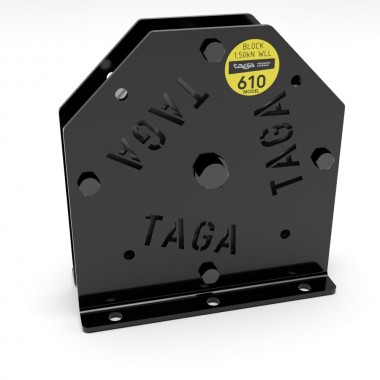

Pulley for 6mm cable (Configurable)
Fixed pulley for comb.
Available accessories for multiple uses.
Two heights can be configured.
The maximum load that can be requested to the system cannot exceed 152,96kg (1,50kN) of dynamic load.
The fastening system is made by mechanical means to the fixed structure of the stage box (NOT INCLUDED).
The fastening system is compatible with:
- PEINE UPN 80
- TRAMEX 80
- VARIOUS STRUCTURAL PROFILES
Dimensions: 200 x 85 x 210 mm.
Sheave diameter: 160mm.
Regulations: Machinery Directive 2006/42/CE.
UNE-EN ISO 12100:2012 Safety of machinery.
General principles for design, risk assessment and risk reduction.
