SWIVEL PULLEY STEEL WIRE ROPE 6MM MODEL 360 TAGA

€365.00 VAT not included
Reference: 1230249
EAN-13:
PULLEY STEEL WIRE ROPE OF 6MM MODEL 360 TAGA
Quantity

  • Política de seguretat (editeu-la amb el mòdul de reassegurança de Client) Política de seguretat (editeu-la amb el mòdul de reassegurança de Client)
  • Política d\'enviaments (editeu-la amb el mòdul de reassegurança de Client) Política d'enviaments (editeu-la amb el mòdul de reassegurança de Client)
  • Política de devolucions (editeu-la amb el mòdul de reassegurança de Client) Política de devolucions (editeu-la amb el mòdul de reassegurança de Client)

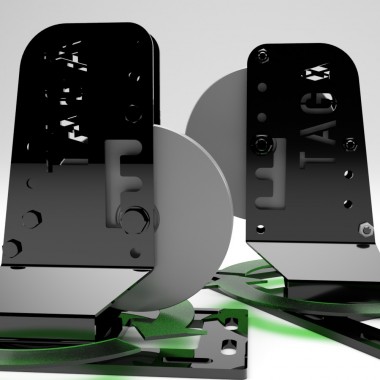

Pulley for 6mm steel wire rope Model 360

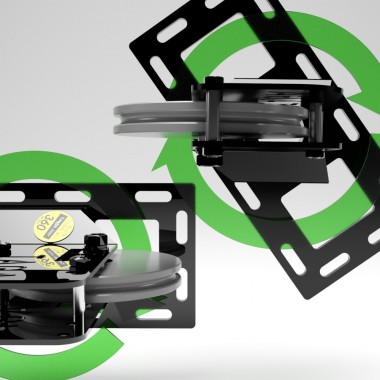

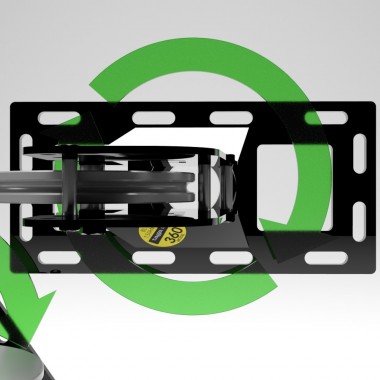

Z-axis swivel pulley (vertical wire rope) configurable in three different heights for comb.
The maximum load that can be requested to the system cannot exceed 152,96 kg (1,50kN) of dynamic load.
The fixing system is made by mechanical means to the fixed structure of the stage box (NOT INCLUDED).
The fixing system is compatible with:
- UPN 80 comb
- Tramex 80
- Various structural profiles

Dimensions: 340 x 270 x 160 mm. sheave diameter: 160mm.
Includes: Individual serial number. Instruction manual. Declaration of Conformity.
Declaration of Conformity:
- Machinery Directive 2006/42/EC
- UNE-EN ISO 12100:2012 Safety of machinery. General principles for design, risk assessment and risk reduction.



Download

DECLARATION OF CONFORMITY

Download (115.28k)
