VOYAGER TW

About

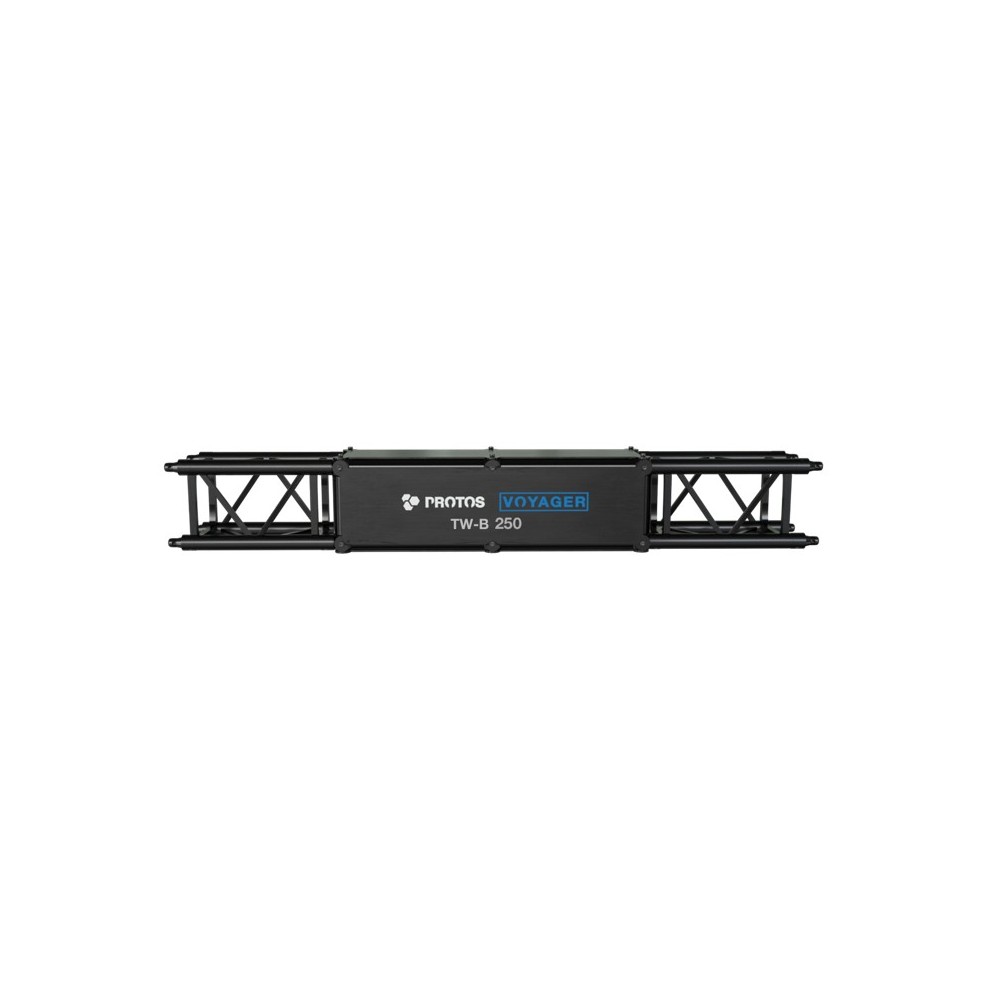

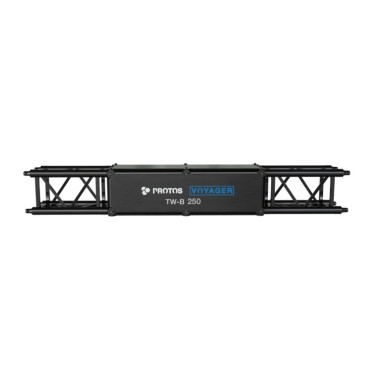

The single span PROTOS VOYAGER Truss Winch is the perfect example of Dutch lifting engineering ingenuity. The winch systems in the TW range are integrated in a standard 30/40cm truss box frame of 1/1.3m length that can be connected to standard LITETRUSS H34V, SIXTY82, TPM 29S, 39S truss or equivalent.

The uniquely designed universal pulley plates can be mounted at any position along the truss span, guiding the 4/6 steel wire ropes. The standard TW single truss span range consists of 250, 400, 600, and 800Kg WLL models. The maximum standard lifting height is 10m and is capable of connecting truss spans ranging from 3 to 24m. The TW is equipped with double limit switches as well as over and under load detection.

The TW is available at a fixed speed of 5m/min or with variable speeds ranging from 0 - 8 m/min. It is rated IP54, has a phase monitoring system and offers an economic power consumption of 0.85Kw at 400V/50Hz while complying with EN-17206 and CE.

VOYAGER TW Basic

Aside from the standard TW/TWG systems which can be controlled by 1 or 4 channel rack mount or the 1 channel variable speed controller with optional DMX control, the range has been extended with the TW-Basic and TWGBasic versions. This basic version offers a simplified and more economical solution, enabling access for small budgets such as schools, black boxes and the like.

The TW-B and TWG-B are controlled by a pendant controller with a simple up/down selection and E-stop switch. The winch itself is equipped with limit switches and complying with all international standards gauranteeing the highest standards for safety and quality possible.


Technical Specifications

·WLL: 400 KG
·Safety Factor : 10:1
·Maximum Travel Range : 10 m
·Lifting Speed Fixed : 5 m/min
·Lifting Speed Variable : 0-8/miin
·Operating Voltage : 3Ph-400V-50Hz
·Control Voltage : 24 V
·Connector type : Harting Eco B
·Protection Class : IP54
·Motor Power : 1,1 kW
·Current At full Load: 7,2A
·Classification - EN : EN-17206
·Noise level at 1m : 55 - 74dB
·Steel Cables / Pulley : 4x 6mm
·Cable Weight / Meter : 0,198 kg
·Self Weight : 88 kg
·Locking Torque : 1100Nm
·Compatible Truss Type : LITETRUSS H34V / TPM29S
·Dimensions : 1x0,293x0,293 m
·Max Truss Span Length : 24 m
