Naxpro-Truss Easy Towerlift
Whether as ground support with 4 towers or as a slim dual-tower variant, the Naxpro-Truss tower systems enable a fast and uncomplicated realization of e.g. exhibition stands, concert stages, canopies, LED walls and mobile, industrial lifting devices.

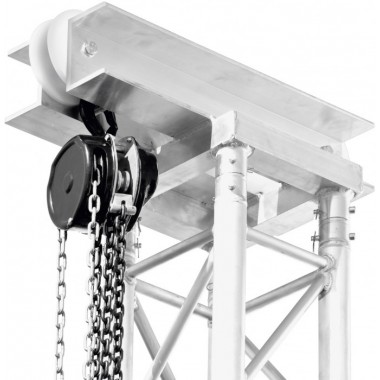

The assembly of Naxpro-Truss Ground Supports and Dual Tower systems is easy and quick to realize. The towers can be erected in a force-saving and positionally accurate way thanks to the included buckling elements. The great advantage of working with towers is that all the equipment to be used can be installed on the ground and then pulled up to the desired height using motorized or manual chain hoists.
Technical data:

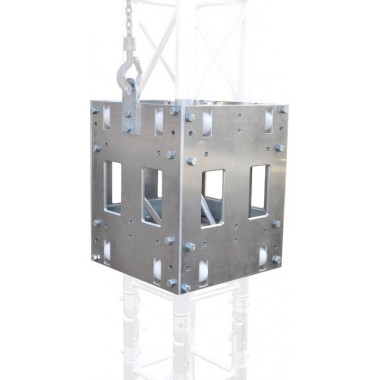

Sleeve block suitable for Naxpro-Truss FD34 and HD34 truss systems
Belt tube 50x3 mm
Diagonal 20x2 mm
Alloy EN AW 6082 T6
Max height 5.00 m
Max load 500 kg
Transport height: approx. 165.5 cm
Transport width: approx. 58 x 58 cm
Basic dimension boom extended: approx. 181 x 181 cm
Outer dimension sleeve: 51 x 51 cm
Weight: 0,00 kg
