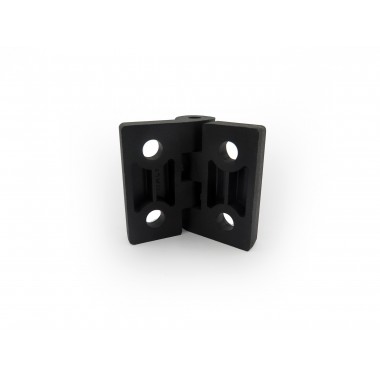

TECHNOPOLYMER HINGE M-8 | Stage accessories

€6.93 VAT not included
In stock
Reference: 0130598
EAN-13:
HIGH-STRENGTH POLYAMID BASED TECHNOPOLYMER HINGE
Quantity
€6.93 VAT not included
In stock

Add to favorites
Add to wishlist


High resistance polyamide based polyamide (PA) technopolymer hinge. Resistant to solvents, oils, greases and other chemical agents.
Color: Black, matte finish
Hole: M-8
Rotation bolt: AISI 303 stainless steel
Mounting: Through holes for socket head cap screws
Rotation angle: Max. 270º, between 0º and -90º and between 0º and 180º

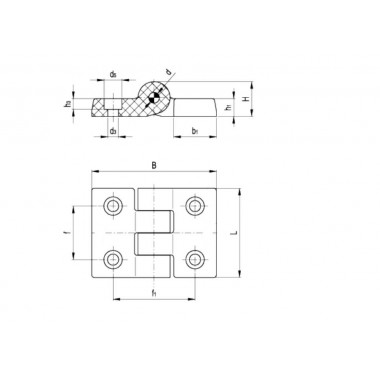

L: 50MM
B: 69.5MM
F: 30MM
F1: 45.5MM
H: 19.5MM
H1: 10MM
H3: 4.5MM
B1: 24MM
D: 6MM
D3: 8.5MM
D5: 13MM


Download

CAD 2D - 0130598 - FRONT

Download (37.13KB)

CAD 2D - 0130598 - RIGHT

Download (34.38KB)

CAD 2D - 0130598 - TOP

Download (36.63KB)
