TECHNOPOLYMER HINGE M-6 | Stage accessories
€6.80 VAT not included
In stock
Availability:
Reference: 0130193
EAN-13:

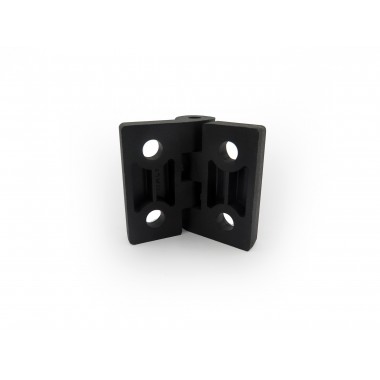

HIGH-STRENGTH POLYAMID BASED TECHNOPOLYMER HINGE
High resistance polyamide based polyamide (PA) technopolymer hinge. Resistant to solvents, oils, greases and other chemical agents.
Color: Black, matte finish
Hole: M-6
Rotation bolt: AISI 303 stainless steel
Mounting: Through holes for socket head cap screws
Rotation angle: Max. 270º, between 0º and -90º and between 0º and 180º
L: 50MM
B: 69.5MM
F: 30MM
F1: 45.5MM
H: 19.5MM
H1: 10MM
H3: 6.5MM
B1: 24MM
D: 6MM
D3: 6.5MM
D5: 10MM
0130193
Download
CAD 2D - 0130193 - FRONT
Download (37.13KB)CAD 2D - 0130193 - RIGHT
Download (34.38KB)CAD 2D - 0130193 - TOP
Download (36.63KB)
HIGH-STRENGTH POLYAMID BASED TECHNOPOLYMER HINGE
