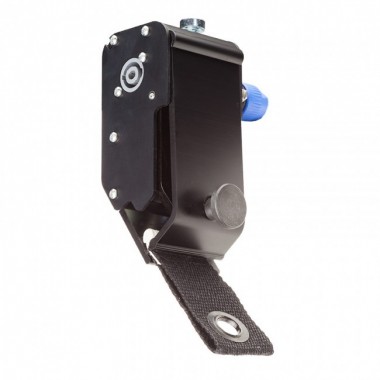

KABUKLIP RELEASE UNIT (IP54)

€430.36 VAT not included
Reference: 1000028
KABUKLIP - KABUKI RELEASE UNIT (IP54) SPLASH-PROOF
Size Chart
alt
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384



SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
23.56395
24.16.539.55.5
24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384



SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
23.56395
24.16.539.55.5
24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5

How to Take Clothing Measurements

  1. Get a flexible measuring tape. These are often sold in craft stores
  2. Neck:
    • Measure around the base of the neck in inches.
    • Round up to the nearest half inch.
  3. Chest:
    • Wrap tape measure under armpits around fullest part of chest (usually right above nipples
  4. Sleeve:
    • Bend your elbow and rest your hand on your hip.
    • Have someone measure from the middle of the back of your neck to your wrist by putting the tape measure over your shoulder, around your elbow and to your wrist.
  5. Waist:
    • Wrap tape measure around where you normally wear your pants. Keep tape measure a little loose by keeping a finger between the tape measure and your waist.
  6. Inseam:
    • Put on a pair of shoes.Have someone measure from your crotch to back of the heel, where you want your pants to end.
  7. Hands:
    • Measure around the hand at the fullest part (exclude thumb). The number of inches shows the size of the glove.
Quantity

  • Política de seguretat (editeu-la amb el mòdul de reassegurança de Client) Política de seguretat (editeu-la amb el mòdul de reassegurança de Client)
  • Política d\'enviaments (editeu-la amb el mòdul de reassegurança de Client) Política d'enviaments (editeu-la amb el mòdul de reassegurança de Client)
  • Política de devolucions (editeu-la amb el mòdul de reassegurança de Client) Política de devolucions (editeu-la amb el mòdul de reassegurança de Client)

For the dropping of fabrics and curtains for outdoor use (IP54).
KabuKlip - the unique Kabuki curtain drop system in splash-proof design for outdoor use.

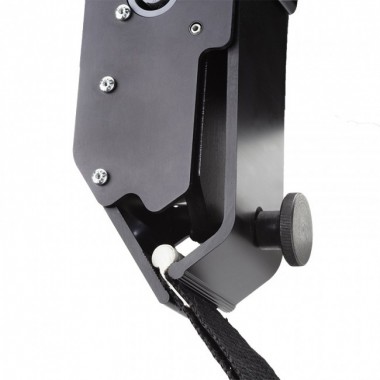

The KabuKlip release unit holds curtains, fabrics or films without eyelets or any edge processing either by pure terminals or positive connection.
The application without metal inserts such as eyelets, rings or hooks leads to a natural and light dropping of the Kabuki curtains. In addition, possible injury scenarios are eliminated.
The release eyelet is used for the release of heavy materials.
The KabuKlip release units always open reliably at exactly the right point in time.
Mechanical jamming is excluded by design!

Scope of delivery:

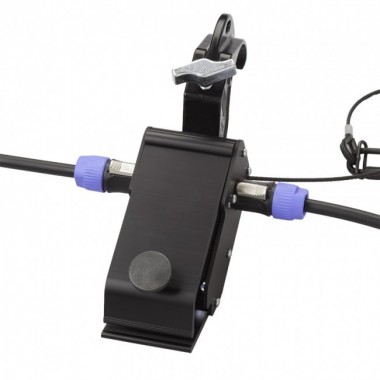

KabuKlip carrier unit with two integrated M12 threads for attachment of standard halfcouplers or hook clamps
M12 hexagon socket head cap screw with snap ring and shim

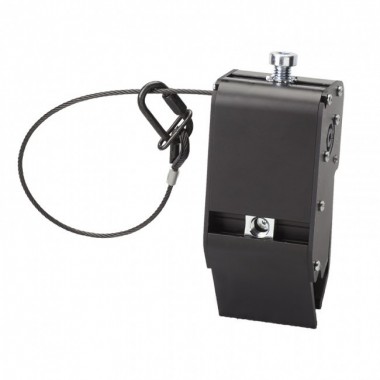

Steel safety 3mm
Inboard, separately switchable operating LED.



Connection: 220V/240V
Operating mode: 24V-DC
Duty cycle:  100%
Protection:  IP 54
Internal connections:  4-Pin Speakon _1.5mm

Please note that:

- The carrying capacity can be limited in a given case by the suspension used.
- The functional reliability can only be guaranteed when using proper 4x1.5mm² cables - cables with smaller diameter can overheat!
- Dropped loads can cause injuries to people.
- Dropped loads can cause damage to objects.
- The release unit is secured against unauthorised activation.
- The drop zone must be secured at all times, especially during the assembly and mounting of the load.
PS - STAGE is not liable for damages due to falling objects, whether intentional or unintentional or due to a malfunction.
