QUICK BLACK MAILLON DIAM. 4 MM

€2.23 VAT not included
Reference: 1230213
QUICK BLACK MAILLON DIAMETER OF 4 MM
Size Chart
alt
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384



SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
23.56395
24.16.539.55.5
24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384



SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
23.56395
24.16.539.55.5
24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5

How to Take Clothing Measurements

  1. Get a flexible measuring tape. These are often sold in craft stores
  2. Neck:
    • Measure around the base of the neck in inches.
    • Round up to the nearest half inch.
  3. Chest:
    • Wrap tape measure under armpits around fullest part of chest (usually right above nipples
  4. Sleeve:
    • Bend your elbow and rest your hand on your hip.
    • Have someone measure from the middle of the back of your neck to your wrist by putting the tape measure over your shoulder, around your elbow and to your wrist.
  5. Waist:
    • Wrap tape measure around where you normally wear your pants. Keep tape measure a little loose by keeping a finger between the tape measure and your waist.
  6. Inseam:
    • Put on a pair of shoes.Have someone measure from your crotch to back of the heel, where you want your pants to end.
  7. Hands:
    • Measure around the hand at the fullest part (exclude thumb). The number of inches shows the size of the glove.
Quantity

  • Política de seguretat (editeu-la amb el mòdul de reassegurança de Client) Política de seguretat (editeu-la amb el mòdul de reassegurança de Client)
  • Política d\'enviaments (editeu-la amb el mòdul de reassegurança de Client) Política d'enviaments (editeu-la amb el mòdul de reassegurança de Client)
  • Política de devolucions (editeu-la amb el mòdul de reassegurança de Client) Política de devolucions (editeu-la amb el mòdul de reassegurança de Client)

Quick maillon thanks to the thread, it can be opened and closed quickly and easily.
DIN 56927
Color: black
Weight: 12 gr.
Loading capacity: 180 kg
Breaking load: 900 kg

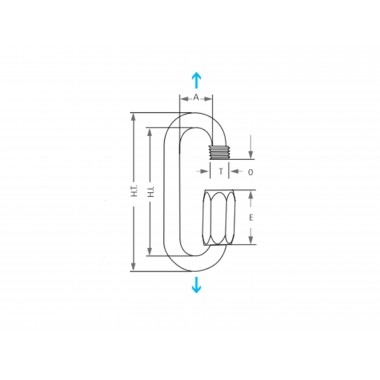

Dimensions:
H.T. : 39.5 mm
H.I. : 31.5 mm
A: 11.5 mm
O: 5.5 mm
E: 12.5 mm
T: 6 mm

Material:
Zinc plated steel.

Recommendations for use:
- Do not exceed the engraved working load WLL in kg on the quick link nut.
- Systematic visual inspection of the complete closure of the nut, no thread should be visible.
- Quick link to be used only in the longitudinal direction (major axis).
- Each maillon must be subject to regular visual inspection. In case of doubt about the product, it is the responsibility of the user to make the replacement.
- Locked with a wrench at the specified torque, the Maillon becomes a permanent connector.

Tightening torque (N.m)
Maillon diam. 4mm
Tighten: 0.7

- Maillon to connect only with one element of the same material.
- When attached to a chain, the link must be of the same diameter.
- Never connect a link with a lifting chain.
