MAILLON RAPIDO NEGRO DIAM.6 mm

Quick Maillon  thanks to the thread, it can be opened and closed again in a fast and easy way.
Colour: black
Weight: 35 gr.
Payload: 400 kg
Breaking load: 2000 kg

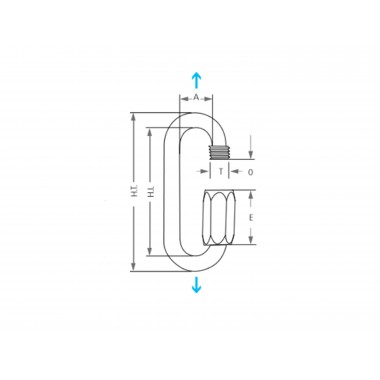

Dimensions:
H.T.: 57 mm
H.I. 45 mm
A : 14,5 mm
O : 7,5 mm
E : 19 mm
T : 9 mm

Material :
Zinc plated steel.
Bar: steel for surface treatment for maximum tensile strength. EN10016-2
Nut: high security steel (lead-free, systematic control after stretching with currents) EN10087
Surface treatment: zinc plated with electrolytic coating.

Recommendations for use:
- Do not exceed the engraved working load WLL in kg on the nut of the quick maillon.
- Systematic visual inspection of the complete closure of the nut, no thread should be visible.
- Quick Maillon to be used only in the longitudinal direction (major axis).
- Each maillon should be subject to regular visual inspection. In case of doubt about the product, it is the responsibility of the user to make the replacement.
- Closed with a wrench at the specified torque, the Maillon becomes a permanent connector.

Tightening torque (N.m)
Maillon diam. 6mm
Tightening: 1,20

- Maillon to connect only with one element of the same material.
- When fastened with a chain, the mallon must be of the same diameter.
- Never connect a maillon with a lifting chain.
