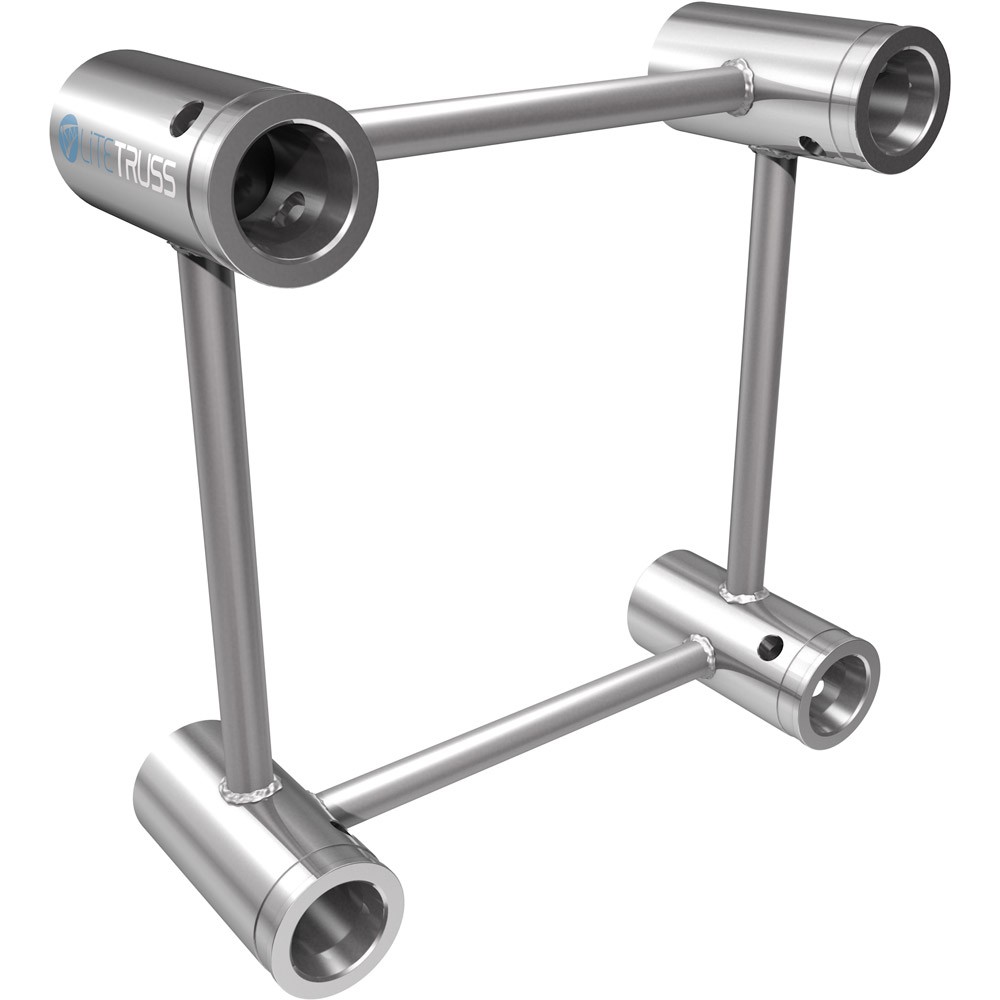

SWISSBLOCK - LITETRUSS X/H34V BOXCORNER ATTACHMENT 105,5 MM | Rigging

Litetruss X/H34V truss system

Trust in proven quality - with the X34V trusses you are exactly right. The system was specially developed for event technology, as a support system for lighting or for trade fair and store construction. With this powerful 4-point truss system, you have numerous options in terms of construction size and length. The compact system also offers you a high degree of flexibility and load capacity.

The H34V on the other hand stands for 4-point heavy duty truss. The truss was designed as a universal system in the field of event technology, for trusses in lighting technology or in trade show and store construction. The compact and stable series, which is available in different lengths and sizes, impresses with an excellent price-performance ratio.

With the conical connector technology you succeed in a quick and easy assembly the matching connector sets are available separately. The simple assembly of the system is easily achieved with a light aluminum hammer. All Litetruss products meet the highest safety requirements and also offer a high degree of design possibilities. Whether complex custom designs or unusual color requests - Litetruss offers you a suitable solution for the most diverse requirements.

Technical data:
·Edge dimension: 290 mm
·Support tube: 51x2 mm
·Filler rods: 16x2 mm
·Alloy: EN AW 6082 T6
·Weight: 1.6 kg
·Dimensions: 10.55 x 29 x 29 cm (LxWxH)
·Connectors must be ordered separately


Designed for quick and secure installation, the hook-head screw slides directly into the truss rail. The truss is open on one side, allowing the connecting screw to be inserted and tightened easily using an Allen key. The attachment is then positioned and secured in place, creating a strong and stable mounting solution.

For this product, you will need:
