Quick Maillon of wide opening thanks to the thread, it can be opened and closed again in a fast and easy way.
Colour: black
Weight: 60 gr.
Payload: 500 kg
Breaking load: 2500 kg

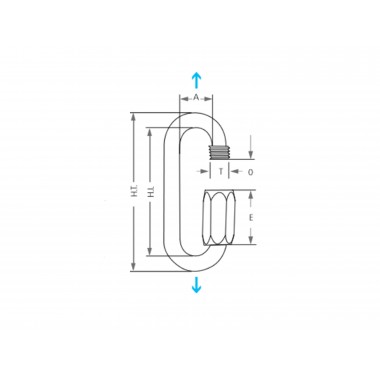

Dimensions:
H.T.: 79 mm
H.I. 65 mm
A : 16 mm
O : 16 mm
E : 28 mm
T : 10 mm
Material :
Zinc plated steel.
Bar: steel for surface treatment for maximum tensile strength. EN10016-2
Nut: high security steel (lead-free, systematic control after stretching with currents) EN10087
Surface treatment: zinc plated with electrolytic coating.
Recommendations for use:
- Do not exceed the engraved working load WLL in kg on the nut of the quick maillon.
- Systematic visual inspection of the complete closure of the nut, no thread should be visible.
- Quick Maillon to be used only in the longitudinal direction (major axis).
- Each maillon should be subject to regular visual inspection. In case of doubt about the product, it is the responsibility of the user to make the replacement.
- Closed with a wrench at the specified torque, the Maillon becomes a permanent connector.
Tightening torque (N.m)
Maillon diam. 7mm
Tightening: 2,50
- Maillon to connect only with one element of the same material.
- When fastened with a chain, the maillon must be of the same diameter.
- Never connect a maillon with a lifting chain.
