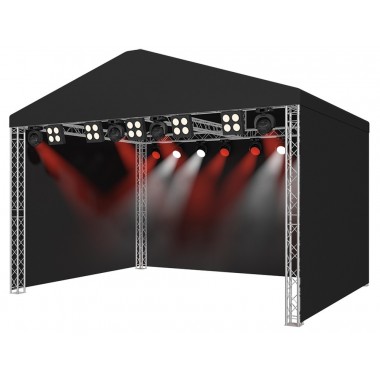

Naxpro-Truss Flat Saddle Roof-Stage SR04

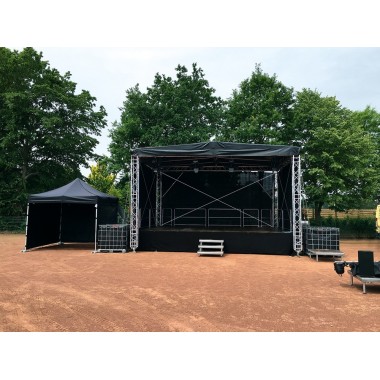

This saddle roof for stages made of Naxpro-Truss FD 33 is an example for just one of the countless construction designs which can be easily and costefficient realized with standard parts of Naxpro-Truss. Whether village fairs, festivals or open-air-concerts, the high adaptability of Naxpro-Truss allows always the right stage size. Contact us, we will be pleased to advise you.
Technical Details Saddle Roof-Stage SR04:
Dimensions Out: ca. 500 x 300 x 421 cm (BxLxH)
Max. Load: ~ 500 kg
Weight: ~ 450 kg
The FD 33 Naxpro-Truss truss construction consists of the following components:
2x Naxpro-Truss FD 33 C25 90º 2 Way Corner
2x Naxpro-Truss FD 33 C33sp 90º 3 Way Corner
2x Naxpro-Truss FD 33 C34sp 90º 3 Way Corner
2x Naxpro-Truss FD 33 C37 90º 3 Way Corner
8x Naxpro-Truss FD 33 Straight 150 cm
4x Naxpro-Truss FD 33 Straight 175 cm
3x Naxpro-Truss FD 33 Straight 200 cm
4x FD 33 Base plate
4x Naxpro-Truss canopy carrier outside for SR04
6x Naxpro-Truss canopy carrier inside for SR04
Offers are exlusively linked to the basic truss construction with simple base plates incl. Statics up to wind zone 2 (
