SCISSOR PLATFORM

SCISSOR PLATFORM "IDEAL STEP" FROM 600 TO 1000MM

€652.44 VAT not included
Reference: 1380053
EAN-13:
SCISSOR PLATFORM "IDEAL STEP" FROM 600 TO 1000MM 2000X1000MM
Quantity

  • Política de seguretat (editeu-la amb el mòdul de reassegurança de Client) Política de seguretat (editeu-la amb el mòdul de reassegurança de Client)
  • Política d\'enviaments (editeu-la amb el mòdul de reassegurança de Client) Política d'enviaments (editeu-la amb el mòdul de reassegurança de Client)
  • Política de devolucions (editeu-la amb el mòdul de reassegurança de Client) Política de devolucions (editeu-la amb el mòdul de reassegurança de Client)

IDEAL STEP, folding stage but with continuously adjustable legs.
There is a wide variety of stages available for indoor and outdoor use. We use proven and well-designed technology to connect the individual elements of the stage and place additional elements.
Mobile stage with folding hardware with one-hand release, stage without individual parts.
This folding platform is equipped with permanently mounted legs, which can be folded for transport and storage.
Alternatively, different lengths of fixed legs are available to obtain stage heights.

Advantage:
Stability through closed special aluminum frame.

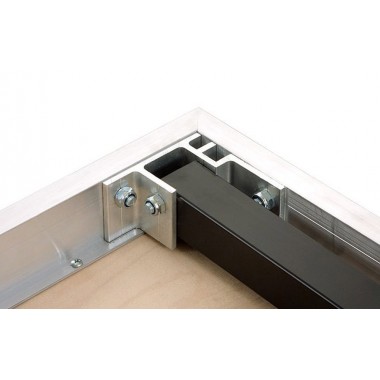

Stable corner connections with special aluminum frames.
Kink-proof tripod thanks to threaded joints and integrated corner brackets with frame bolted to the most favorable center of gravity, stage legs with struts.

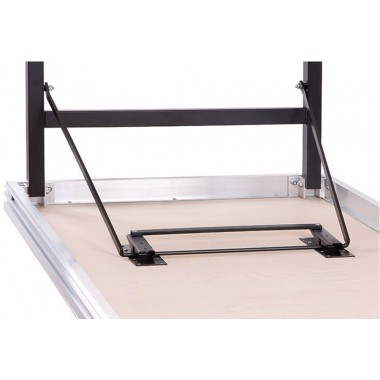

Snap-snap mechanism for exact and twist-free locking of the legs in the position of use, unlocking with one hand.
The stage floor is firmly bolted to the frame.
Circumferential mounting rail for X connector or quick connector developed by us for simple, fast and reliable connection of stage elements to each other. Accessories such as railings, panels, curtains, stairs etc. They are securely attached to the mounting rail.
Edge protection for floor covering and cladding substructure up to a height of 21mm integrated into the frame.
Quick connector for additional clamping under heavy loads.
No height differences, even with uneven hallway floors, thanks to the supplied X connector.
Low storage height of only 90mm
Hassle-free stage construction.

TECHNICAL SPECIFICATIONS:

Measure: 2000X1000MM
Height: 600MM TO 1000MM adjustable leg
Weight: from 69kg
Load capacity: 750 kg / m²
Useful surface: 2 m²
Stacking height: 90mm

DOES NOT INCLUDE WOOD
