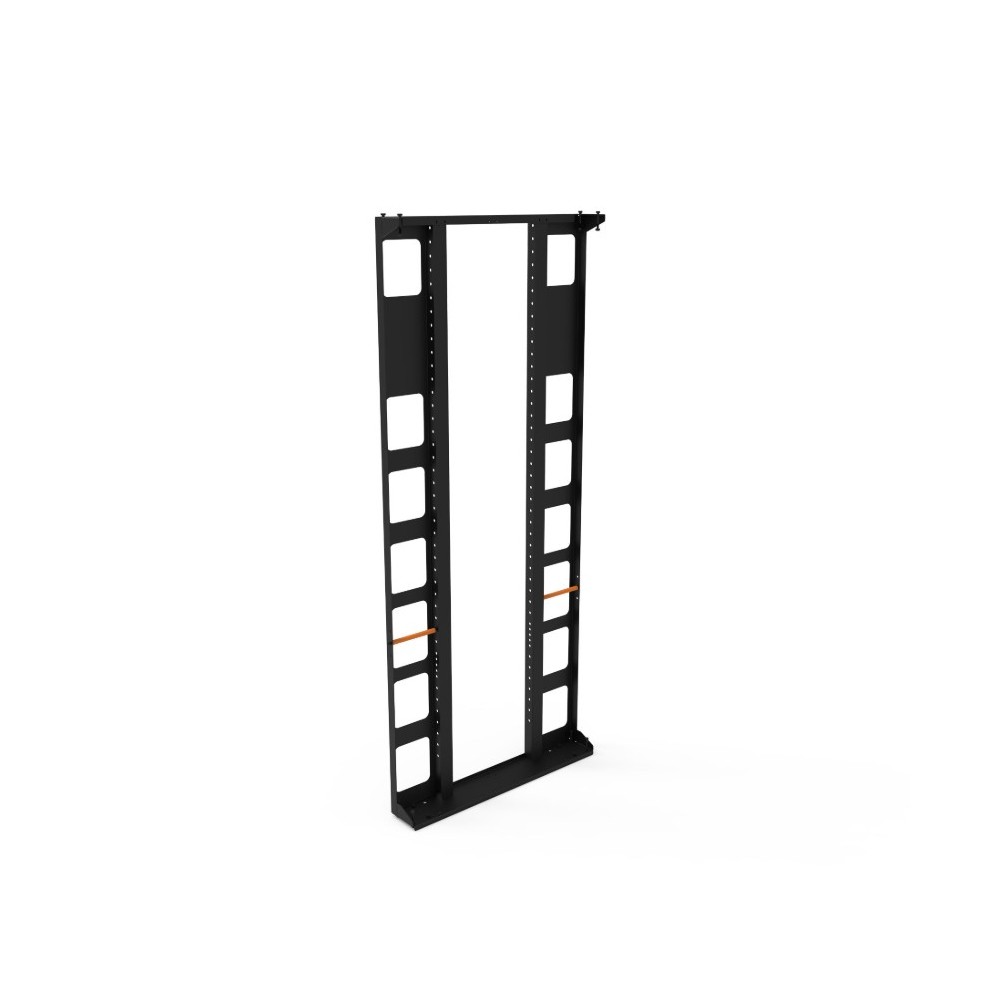

ADMIRAL FORK-SIDE PANEL H 203 X W 80 | Modular Cart | Meatrack

The slim-line panel forms one side of carts within the Admiral modular transport system. With a height of 203 cm and a width of 60 cm, it is used together with length profiles and a second side panel to create a strong and stable cart frame.

The pre-drilled hole pattern allows internal components to be mounted at different positions inside the cart, enabling flexible configurations depending on the application.

With a height of 203 cm, this configuration provides maximum vertical storage capacity within the cart.

This panel is also used in Storage cart configurations with a single row of crates and a cart height of 203 cm.

The panel is manufactured from steel and finished with a durable black powder coating for long-term use in professional rental and touring environments.

Integrated handles with orange grip bars allow controlled handling and help manoeuvre the cart, for example when moving over thresholds or positioning the cart on site.

This product is supplied as a single panel. A bolt set required for assembling the cart frame is not included.

For Cable cart configurations, the slim-line panel with integrated centre bracket must be used instead.

Dimensions: (W x H) 600 x 1866 mm
Material: steel
Weight: 13.50 kg
Colour: black gloss 30% (RAL 9005) / orange gloss 30% (RAL 2008)
Finish: powder coated
Not included: bolt set
