€3,431.02 VAT not included
Delivery Between 7 and 10 working days

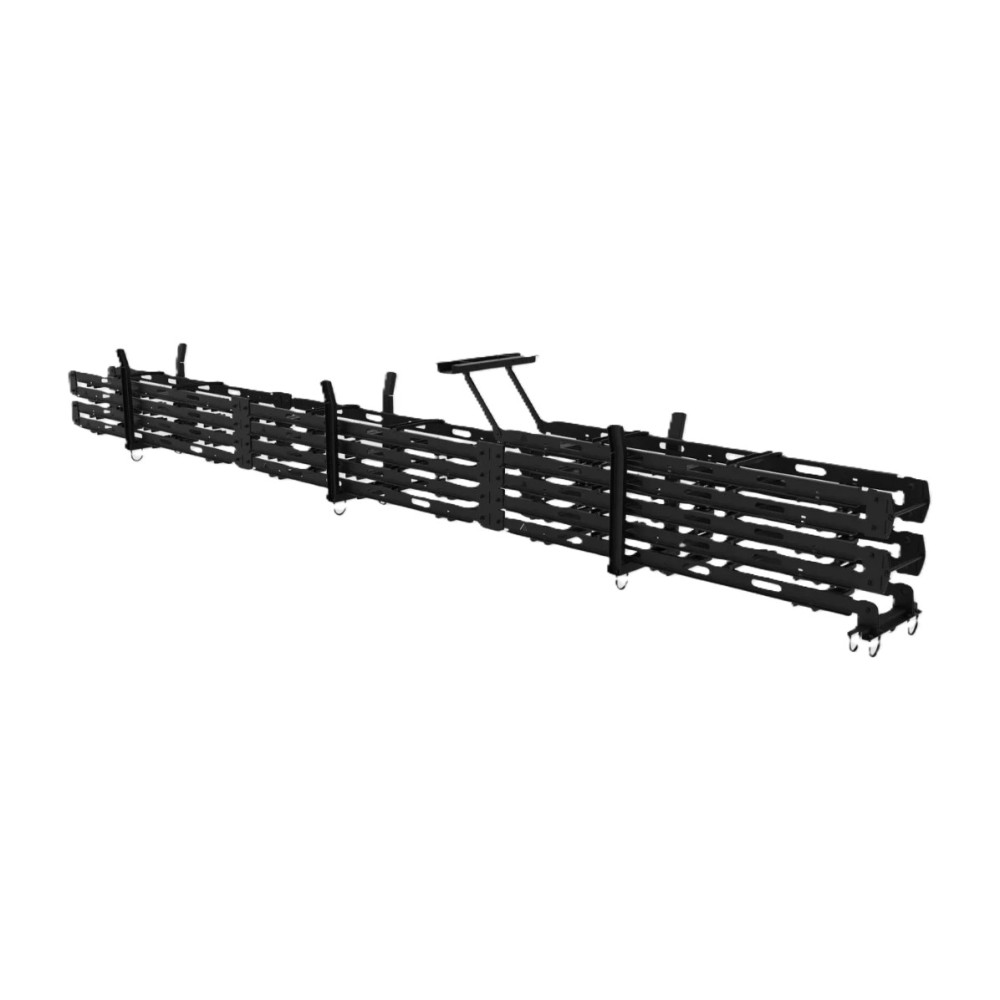

A flexible and robust solution for routing cables
The XL cable guide is ideal for high-demand installations that require the managing of many cables. Thanks to the 220 mm wide gutter, it can accommodate many cables at once, reducing the need for multiple cable guides. An L version is also available, featuring gutters that are 108 mm wide. It can be installed on truss 30 with U-bolts or on truss 40 using a matching adapter available for separate purchase. To keep power and signal cables separate, the XL guide can be fitted with a divider insert.
The sections of the guide are made of aluminium, while the hinges are made of steel. With a centre hinge that can bend up to 40 degrees and corner hinges that can move up to 170 degrees, the XL cable guide is designed to be flexible, lightweight and durable.
The corner hinges are also equipped with a reinforcement rod, which also serves as a guideline for how long the cables must be to reach the full length. Additionally, the top hinge has length strips to minimise lateral movement of the truss and cable guide during use.
Max load: 100 kg/m
Height: 19.5 meter
Base: 4.5 meter
Material (length part): aluminum
Material (hinges): steel
Weight: 75,8 kg
Colour: black gloss 30% (RAL 9005)
Finish: powder coated
ADMIRAL XL CABLE GUIDE BASE 4,5M - H 19,5M BLACK
