WHEEL OF 100 MM FOR BASE PLATE

€68.78 VAT not included
Reference: 0040127
WHEEL OF 100 MM FOR BASE PLATE HOAC FRAME
Size Chart
alt
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384



SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
23.56395
24.16.539.55.5
24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384



SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
23.56395
24.16.539.55.5
24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5

How to Take Clothing Measurements

  1. Get a flexible measuring tape. These are often sold in craft stores
  2. Neck:
    • Measure around the base of the neck in inches.
    • Round up to the nearest half inch.
  3. Chest:
    • Wrap tape measure under armpits around fullest part of chest (usually right above nipples
  4. Sleeve:
    • Bend your elbow and rest your hand on your hip.
    • Have someone measure from the middle of the back of your neck to your wrist by putting the tape measure over your shoulder, around your elbow and to your wrist.
  5. Waist:
    • Wrap tape measure around where you normally wear your pants. Keep tape measure a little loose by keeping a finger between the tape measure and your waist.
  6. Inseam:
    • Put on a pair of shoes.Have someone measure from your crotch to back of the heel, where you want your pants to end.
  7. Hands:
    • Measure around the hand at the fullest part (exclude thumb). The number of inches shows the size of the glove.
Quantity

  • Política de seguretat (editeu-la amb el mòdul de reassegurança de Client) Política de seguretat (editeu-la amb el mòdul de reassegurança de Client)
  • Política d\'enviaments (editeu-la amb el mòdul de reassegurança de Client) Política d'enviaments (editeu-la amb el mòdul de reassegurança de Client)
  • Política de devolucions (editeu-la amb el mòdul de reassegurança de Client) Política de devolucions (editeu-la amb el mòdul de reassegurança de Client)

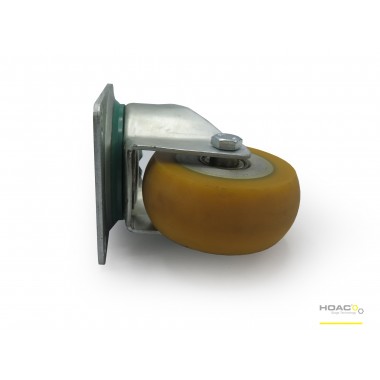

Vulkollan wheel, aluminum core, 92º Shore, bearings. (convex)

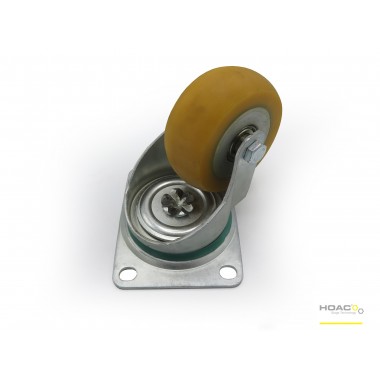

Galvanized steel housing and rotating head with two rows of balls.
Wheel size: 100x40 mm
Stage size: 140x110mm
Total height: 125 mm
Distance between holes: 150x80 mm
Hole Diameter: 11mm
Load capacity: 350 kg
Wheel weight: 1, 70 kg

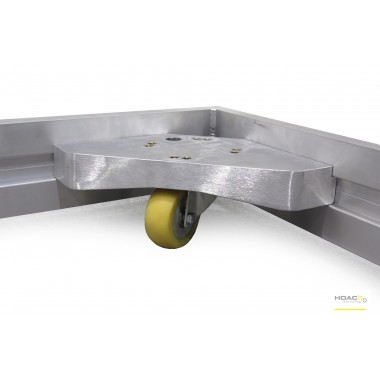

Ideal wheel for the base plate of HOAC frames.

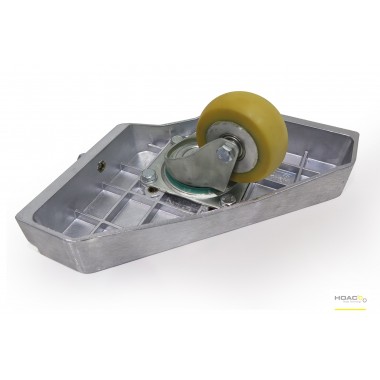

The fixed stage is joined with the base plate by 4 screws.

Vulkollan is a highly elastic material intended for high load capacity.
For wheels and wheel supports, the Vulkollan mesh in glycol is normally used.
Vulkollan covers give the wheels a greater load capacity than if rubber is used. This advantage translates into space and weight savings. The wheels of other plastics are stronger, but do not offer ease of rolling and produce more noise.
Compared to other materials that have the same PUR-Elastomers, Vulkollan has a higher E.module and therefore a greater load capacity accompanied by a low absorption capacity and a low probability of permanent deformation.

Vulkollan is a homogeneous material with a high molecular weight without any additive to enhance its flexibility and color. Tensile strength and continued wear are the same for any type of Vulkollan.
The stiffness of the Vulkollan is proportional to its thickness, showing a high clamping quality when subjected to tensile stress and high tear resistance while its flexibility to impact decreases.

When choosing the type of Vulkollan, its physical characteristics should be considered to vary with temperature; up to 80º C, the elastic characteristics are constant while at low temperatures the Vulkollan becomes more rigid and when it reaches -40ºC the elasticity is zero without any possibility of fracturing.
