NAXPRO-TRUSS GS 64 C35 3 WAY CORNER BLOCK

€831.09 VAT not included
Disponible | Envío en 2 - 3 semanas
Reference: 1451183
EAN-13: 4250595827681
NAXPRO-TRUSS GS 64 C35 3 WAY CORNER BLOCK
Quantity

Add to favorites
Add to wishlist
  • Política de seguretat (editeu-la amb el mòdul de reassegurança de Client) Política de seguretat (editeu-la amb el mòdul de reassegurança de Client)
  • Política d\'enviaments (editeu-la amb el mòdul de reassegurança de Client) Política d'enviaments (editeu-la amb el mòdul de reassegurança de Client)
  • Política de devolucions (editeu-la amb el mòdul de reassegurança de Client) Política de devolucions (editeu-la amb el mòdul de reassegurança de Client)

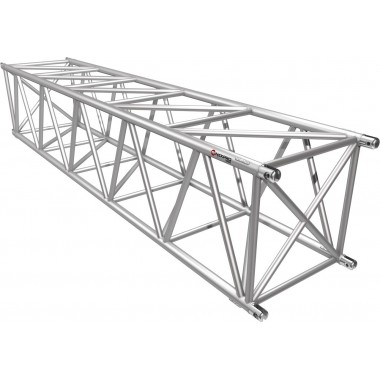

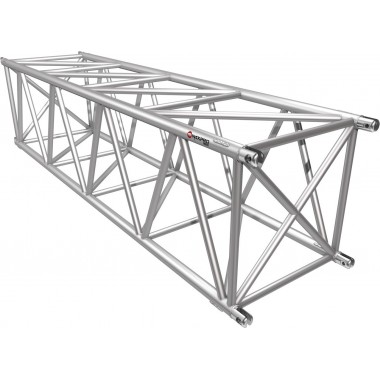

Naxpro-Truss GS 64 Truss System

The heavy-duty truss Naxpro-Truss GS 64 offers with a special combination of an extra strong connection system and a massive tube a maximum of load options. GS stands for Gabelsystem (fork system) and offers with a massive tube of 48.3 x 4.5 mm exceptionally high payload values.

Naxpro-Truss GS 64 is therefore ideally suited for the stage roof constructions, large ground supports, cable bridges, antenna towers and all other truss structures, in which Maximum spans and payloads are required. To connect the truss, the forks are pushed together and fixed in position with a plug-in bolt, which allows a convenient and quick assembly.

Technical data:
Width: 617 mm
Height: 617 mm
Outer diameter tubing: 48 x 4,5 mm
Diagonals: 30 x 3 mm
Including connectors (4x bolt, 4x r-clip)
Alloy truss: EN AW 6082 T6
Weight: ca. 20,00 kg
Dimensions: ca. 61,7 x 61,7 x 61,7 cm (LxBxH)
