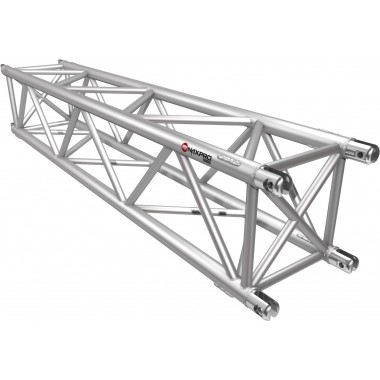

NAXPRO-TRUSS GS 34 STRAIGHT 6 FT (182,88 CM)

€957.14 VAT not included
Disponible | Envío en 2 - 3 semanas
Reference: 1451042
EAN-13: 4250595827568
NAXPRO-TRUSS GS 34 STRAIGHT 6 FT (182,88 CM)
Quantity

  • Política de seguretat (editeu-la amb el mòdul de reassegurança de Client) Política de seguretat (editeu-la amb el mòdul de reassegurança de Client)
  • Política d\'enviaments (editeu-la amb el mòdul de reassegurança de Client) Política d'enviaments (editeu-la amb el mòdul de reassegurança de Client)
  • Política de devolucions (editeu-la amb el mòdul de reassegurança de Client) Política de devolucions (editeu-la amb el mòdul de reassegurança de Client)

Naxpro-Truss GS 34 Truss System

The heavy-duty TÜV certified truss Naxpro-Truss GS 34 offers a perfect combination of compact size and high load possibilities. GS stands for Gabelsystem (fork system) and offers with a massive tube of 48.3 x 4.5 mm exceptionally high payload values.

Naxpro-Truss GS 34 is therefore ideally suited for the stage roof constructions, large ground supports, cable bridges, antenna towers and all other truss structures, in which Maximum spans and payloads are required. To connect the truss, the forks are pushed together and fixed in position with a plug-in bolt, which allows a convenient and quick assembly.


Technical data:
Width: 347 mm
Height: 347 mm
Outer diameter tubing: 48 x 4,5 mm
Diagonals: 25 x 3 mm
Including connectors (4x bolt, 4x r-clip)
Alloy truss: EN AW 6082 T6
TÜV certified
Weight: 20,00 kg
Dimensions: 182,88 x 34,7 x 34,7 cm (LxBxH
