Naxpro Truss GD 44 is a TÜV certified high performance 4 point truss system, which was specially developed for high loads.
Through concerted optimization adverse to the standard 40´s trusses, the GD 44 reaches a distinctly higher load at same dimensions. Besides enhanced bracings and cones, additional welding spots impart the system with a high stabilisation for extreme requirements. The Naxpro Truss GD 44 is therefore perfectly suitable for huge exhibition stands, billboards, open-air stage roofs, and radio-, antenna and floodlight poles.
The system is friction-locked via a conic connection. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminum hammer. Naxpro Truss GD 44 is available in all RAL-colours and custom constructions.
Technical data:
Overall width 400 mm
Outer diameter tubing 50x3 mm
Diagonal bracing 25x3 mm

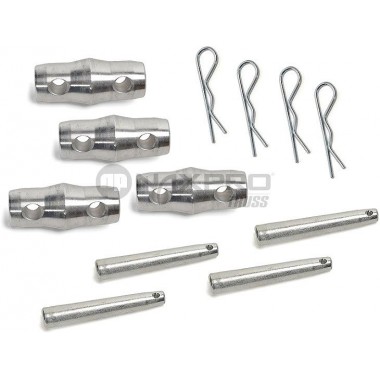

Including cone connectors with pin and r-spring (4x cone connector, 8x bolt, 8x r-clip)
Alloy EN AW 6632 T6
TÜV certified
Weight: 25,00 kg
Dimensions 250 x 40 x 40 cm (LxWxH)
