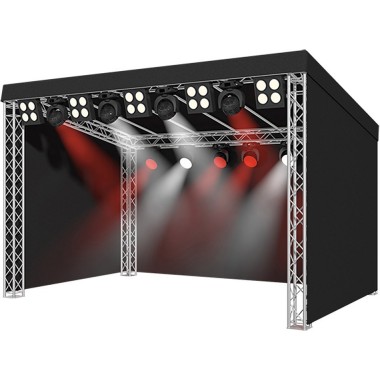

Naxpro-Truss Flat Roof-Stage FR06
Flat roof structures are characterized by a simple and quick handling in the temporary operation. Due to the many standard elements used, this stage roof form belongs to the cheapest roof variants and offers a high scalability.
Technical Details Flat Roof-Stage FR06:
Dimensions Out: ca. 600 x 400 x 336 / 401 cm (BxLxH)
Max. Load: ~ 800 kg
Weight: ~ 800 kg
The FD 33 Naxpro-Truss truss construction consists of the following components:
2x Naxpro-Truss FD 33 Straight 125 cm
4x Naxpro-Truss FD 33 Straight 150 cm
4x Naxpro-Truss FD 33 Straight 200 cm
4x Naxpro-Truss FD 33 Straight 300 cm
1x Naxpro-Truss FD 33 C33 99,8º 3 Way Corner
1x Naxpro-Truss FD 33 C33 80,2º 3 Way Corner
1x Naxpro-Truss FD 33 C34 99,8º 3 Way Corner
1x Naxpro-Truss FD 33 C34 80,2º 3 Way Corner
4x FD 33 base plate
8x Naxpro-Truss - canopy carrier for FR06
Offers are exlusively linked to the basic truss construction with simple base plates incl. Statics up to wind zone 2 (
