NAXPRO-TRUSS FD 43 C19 45° 2 WAY CORNER

€251.26 VAT not included
Disponible | Envío en 2 - 3 semanas
Reference: 1450538
EAN-13: 4250595802541
NAXPRO-TRUSS FD 43 C19 45° 2 WAY CORNER
Quantity

  • Política de seguretat (editeu-la amb el mòdul de reassegurança de Client) Política de seguretat (editeu-la amb el mòdul de reassegurança de Client)
  • Política d\'enviaments (editeu-la amb el mòdul de reassegurança de Client) Política d'enviaments (editeu-la amb el mòdul de reassegurança de Client)
  • Política de devolucions (editeu-la amb el mòdul de reassegurança de Client) Política de devolucions (editeu-la amb el mòdul de reassegurança de Client)

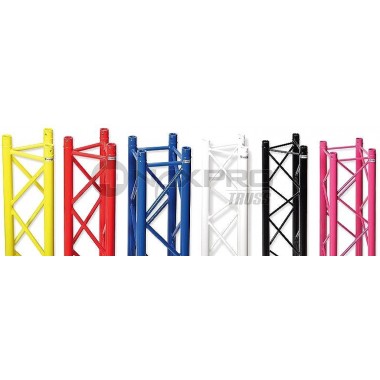

Naxpro FD 43 Truss System

Truss system in 3-point design, especially suitable for exhibition stand and store construction, event technology, as well as a load bearing system for lighting systems. Through the use of compact format and high-load bearing capacity this system is equally well used for simple exhibition stands and highly complex rigging structures.

Through the use of cone connectors, the system is connected actuated by adherence. The connectors are included in delivery. To connect the truss all you need in terms of tools is a small aluminium hammer. Special design constructions and powder-coating are feasible in little time.

Technical data:
Overall width: 400 mm
Outer diameter tubing: 50 x 2 mm
Diagonals: 25 x 3 mm

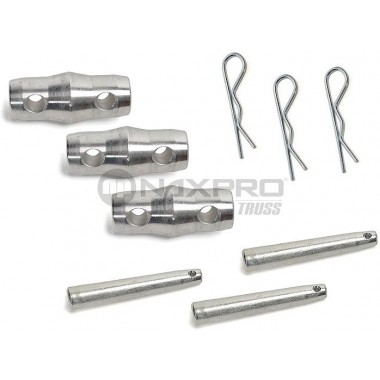

Including cone connectors with pin and r-spring (3 x cone connector, 6x bolt, 6x r-clip)
Alloy: EN AW 6082 T6
Weight: 10,50 kg
Dimensions: 150 x 150 x 35 cm (LxBxH)
Angle: 45º
