Naxpro-Truss FD 23 complete truss system
Dimensions: 3m x 3m x 2,50m outside dimension
Complete system consisting of:
8x Naxpro-Truss FD 23 stretch 200 cm
2x Naxpro-Truss FD 23 C33 90° 3 Way Angle
2x Naxpro-Truss FD 23 C34 90° 3 Way Angle
4x FD 23 base plate
Details Naxpro-Truss FD 23 truss system:Decorative truss system in 3-point design, especially suitable for exhibition stand construction and store fitting as decorative elements and as support system for light lighting technology.The system is connected non-positively by means of a conical connection. The connectors are included in the scope of delivery. To connect the trusses, you only need a light aluminum hammer as a tool.Special designs and powder coatings can be realized in a short time.Technical data:
Edge dimension 220 mm
Belt tube 35x2mm
Diagonal 10x2mm

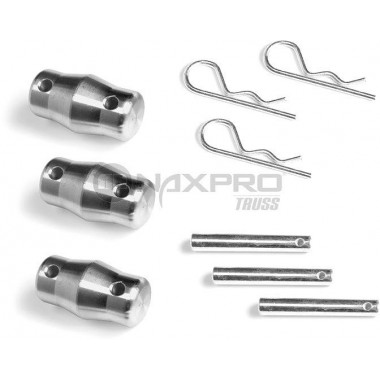

incl. cone connector with bolt and cotter pin
Alloy EN AW 6060 T6
Weight ~60,00 kg
Dimensions: 3 x 3 x 2.5 m (LxWxH)
