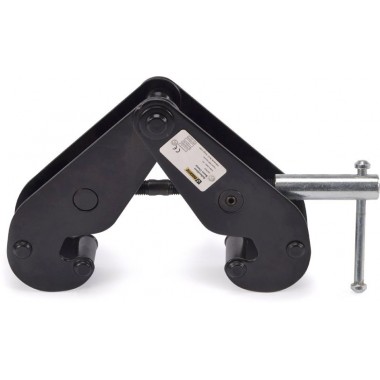

Riggatec girder clamp
The Riggatec girder clamp is used to safely, quickly and easily create an anchor point for holding loads and lifting equipment.
Ideal as a quick solution for urgent work and assembly, the clamp can be installed in a few simple steps. Just open the spindle, place over the girder flange and tighten. The Riggatec girder clamp is particularly suitable for applications in rigging, assembly, workshop, warehouse, manufacturing, etc.
It meets current industry requirements and ensures a safety factor of 4:1. The frame is made of solid insulated steel plates and the spindle is galvanized. The specially shaped jaws significantly reduce beam stress compared to conventional beam clamps.
Advantages:
Rugged construction
Short installation height
Adjustable size for different beam widths
Versatile use
Certified quality
High load capacity
Technical data
Load capacity: 5 t
Flange width: 90 - 322 mm
Installation height: 168 240 mm
Suspension bolt: 30 mm
Weight: 11 kg
RIGGATEC BEAM CLAMP BLACK 5T - 90 - 320 MM
