ADMIRAL RAMP SUPPORT FOR 2 DECKS IN LINE | Accessories for platforms

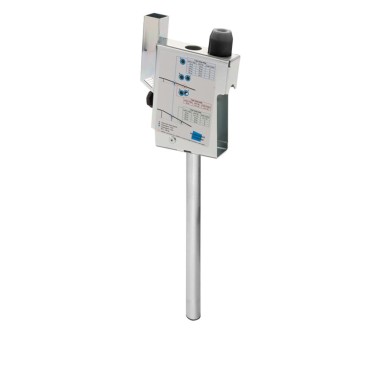

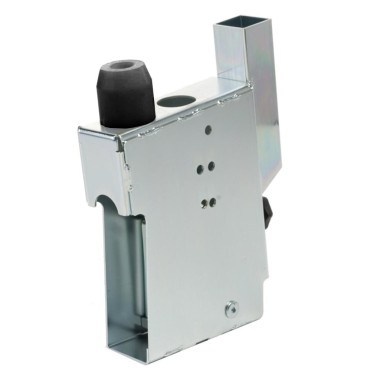

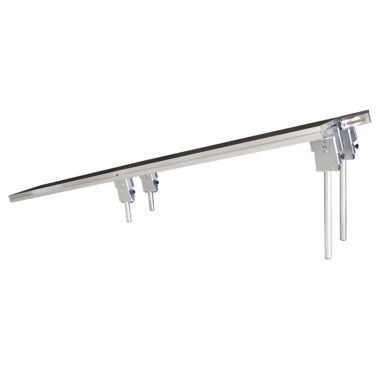

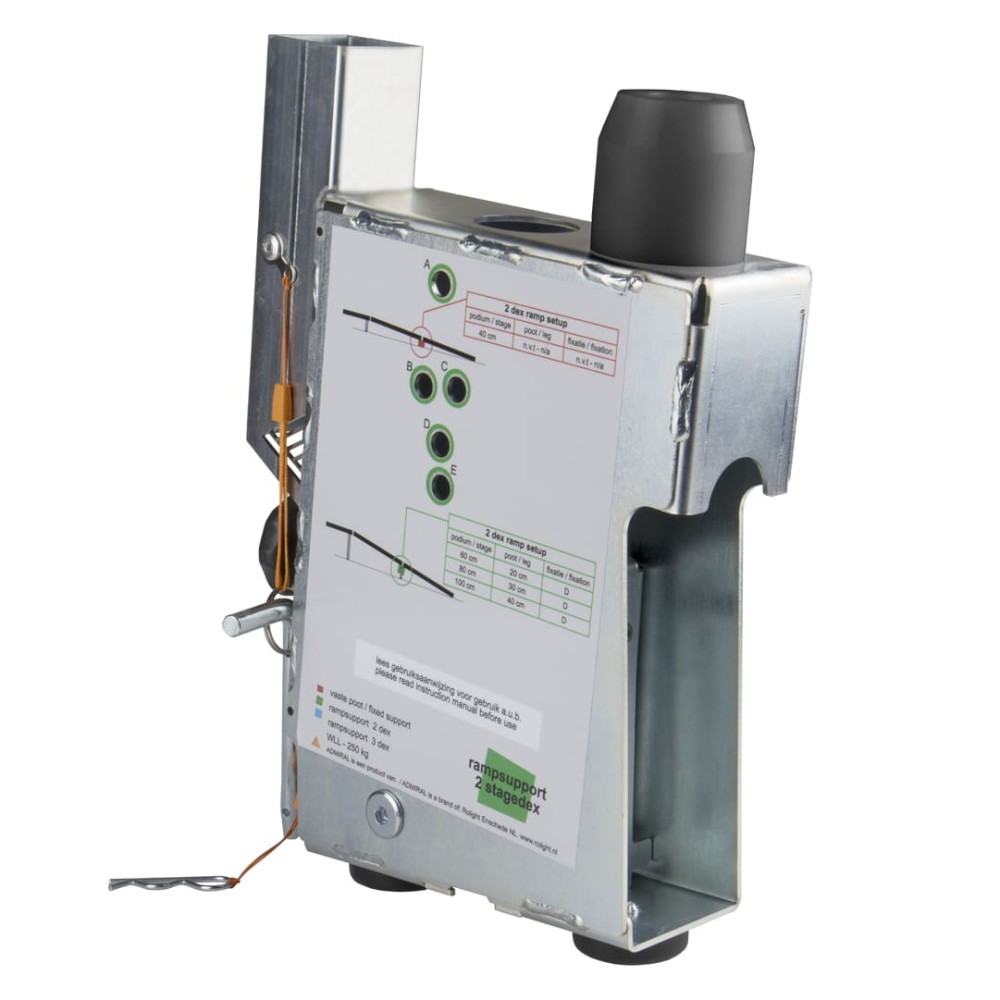

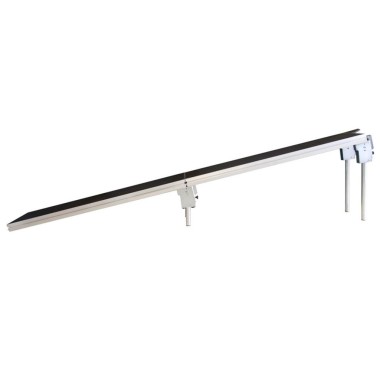

The Admiral Ramp Support is a flexible support for building a sloped ramp attached to a fixed stage. Depending on the stage height, it can be built with two or three pieces of StageDex. The number of StageDex connected sequentially and the stage height determine the slope of the ramp. The Admiral Ramp Support is suitable for stages with a height ranging from 40 cm to 140 cm, in 20 cm increments. Ramp supports are designed to always use standard StageDex legs.
Three types of ramp supports are available, offering a variety of combinations. To build a ramp with the Admiral Ramp Support, a hook-in profile is required. With the Ramp Support, the first platform is hooked onto the stage.
Supports 2 or 3 StageDex

Depending on the desired ramp length, you can choose a support for two or three floors. See our user manual in the downloads section to choose the appropriate option.

Note: Admiral ramp supports are designed to build a ramp for transporting suitcases or other lightweight objects.
The ramp support system is compatible with Prolyte, Nivtec, Innodeck, and Sixty82 Stage 82 platforms. Please note that Eurotruss platforms are not compatible with this system.

Color: Silver
Material: Steel
Maximum load: 250 kilos
Compatible with: Prolyte, Nivtec, Innodeck, Sixty82 Stage 82
