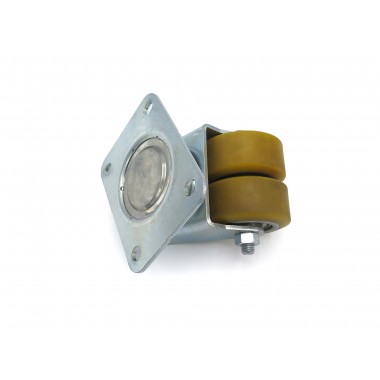

RUEDA DOBLE GIRATORIA DE 80MM

60,39 € IVA no incluido
Referencia: 0040081

RUEDA DOBLE GIRATORIA DE POLIURETANO FUNDIDO DE 80MM

Size Chart
alt
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384



SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
23.56395
24.16.539.55.5
24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384



SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
23.56395
24.16.539.55.5
24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5

How to Take Clothing Measurements

  1. Get a flexible measuring tape. These are often sold in craft stores
  2. Neck:
    • Measure around the base of the neck in inches.
    • Round up to the nearest half inch.
  3. Chest:
    • Wrap tape measure under armpits around fullest part of chest (usually right above nipples
  4. Sleeve:
    • Bend your elbow and rest your hand on your hip.
    • Have someone measure from the middle of the back of your neck to your wrist by putting the tape measure over your shoulder, around your elbow and to your wrist.
  5. Waist:
    • Wrap tape measure around where you normally wear your pants. Keep tape measure a little loose by keeping a finger between the tape measure and your waist.
  6. Inseam:
    • Put on a pair of shoes.Have someone measure from your crotch to back of the heel, where you want your pants to end.
  7. Hands:
    • Measure around the hand at the fullest part (exclude thumb). The number of inches shows the size of the glove.
Cantidad

  • Política de seguretat (editeu-la amb el mòdul de reassegurança de Client) Política de seguretat (editeu-la amb el mòdul de reassegurança de Client)
  • Política d\'enviaments (editeu-la amb el mòdul de reassegurança de Client) Política d'enviaments (editeu-la amb el mòdul de reassegurança de Client)
  • Política de devolucions (editeu-la amb el mòdul de reassegurança de Client) Política de devolucions (editeu-la amb el mòdul de reassegurança de Client)

Rueda giratoria, soporte de chapa de acero pesado, zincado azul, cojinete de bolas a precisión en cabeza giratoria, estanco, eje de rueda atornillado, platina de fijación.
Núcleo de rueda de acero, bandaje de poliuretano fundido, cojinete de bolas de precisión.

DATOS TÉCNICOS:
Diámetro de la rueda: 80mm
Ancho de la rueda: 40mm
Medida de la platina: 137x105mm
Distancia de agujeros: 105x80/75mm
Diámetro de agujero: 11mm
Desplazamiento: 40mm
Interferencia de giro: 160mm
Altura total: 126,8mm
Temperatura: -20/+60ºC
Normativa: EN12532
Peso de la rueda: 3,207kg
Dureza del bandaje: Shore A92
Capacidad de carga: 600kg



Ficha de datos

Medida
80
Capacidad de Carga
600

Descarga

CAD 2D R-0040081

Descarga (393.42k)

CAD 3D R-0040081

Descarga (514.74k)

STP RUEDA R-0040081

Descarga (763.51k)
