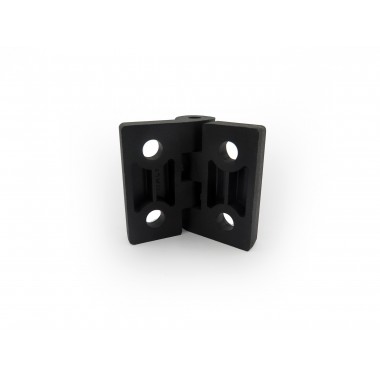

BISAGRA DE TECNOPOLÍMERO M-8

6,92 € IVA no incluido
Referencia: 0130598
BISAGRA DE TECNOPOLÍMERO CON BASE POLIAMÍDICA DE ALTA RESISTENCIA
Size Chart
alt
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384



SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
23.56395
24.16.539.55.5
24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5
CLOTHES
MEASUREXS/34S/36M/38-40L/40-42
UK681012
USA46810
FRA36384042
Waist (cm)64687276
Chest (cm)81858993
Seat (cm)899397101
Inseam (cm)81828384



SHOES
FOOT IN INCHESFOOT IN CMUSAEuroUK
23.56395
24.16.539.55.5
24.87.5406
1025.48417
10¼25.78.541.57.5
10½269428
10¾27.39.542.59.5

How to Take Clothing Measurements

  1. Get a flexible measuring tape. These are often sold in craft stores
  2. Neck:
    • Measure around the base of the neck in inches.
    • Round up to the nearest half inch.
  3. Chest:
    • Wrap tape measure under armpits around fullest part of chest (usually right above nipples
  4. Sleeve:
    • Bend your elbow and rest your hand on your hip.
    • Have someone measure from the middle of the back of your neck to your wrist by putting the tape measure over your shoulder, around your elbow and to your wrist.
  5. Waist:
    • Wrap tape measure around where you normally wear your pants. Keep tape measure a little loose by keeping a finger between the tape measure and your waist.
  6. Inseam:
    • Put on a pair of shoes.Have someone measure from your crotch to back of the heel, where you want your pants to end.
  7. Hands:
    • Measure around the hand at the fullest part (exclude thumb). The number of inches shows the size of the glove.
Cantidad

  • Política de seguretat (editeu-la amb el mòdul de reassegurança de Client) Política de seguretat (editeu-la amb el mòdul de reassegurança de Client)
  • Política d\'enviaments (editeu-la amb el mòdul de reassegurança de Client) Política d'enviaments (editeu-la amb el mòdul de reassegurança de Client)
  • Política de devolucions (editeu-la amb el mòdul de reassegurança de Client) Política de devolucions (editeu-la amb el mòdul de reassegurança de Client)

Bisagra tecnopolímero de base poliamídica (PA) de alta resistencia. Resistente a disolventes, aceites, grasas y otros agentes químicos.
Color: Negro, acabado en mate
Agujero: M-8
Perno de rotación: Acero inoxidable AISI 303
Montaje: Agujero pasantes para tornillos de cabeza cilíndrica
Ángulo de rotación: Máx. 270º, comprendido entre 0º y -90º y entre 0º y 180º

L: 50MM
B: 69.5MM
F: 30MM
F1: 45.5MM
H: 19.5MM
H1: 10MM
H3: 4.5MM
B1: 24MM
D: 6MM
D3: 8.5MM
D5: 13MM


Descarga

CAD 2D - 0130598 - FRONT

Descarga (37.13k)

CAD 2D - 0130598 - RIGHT

Descarga (34.38k)

CAD 2D - 0130598 - TOP

Descarga (36.63k)
